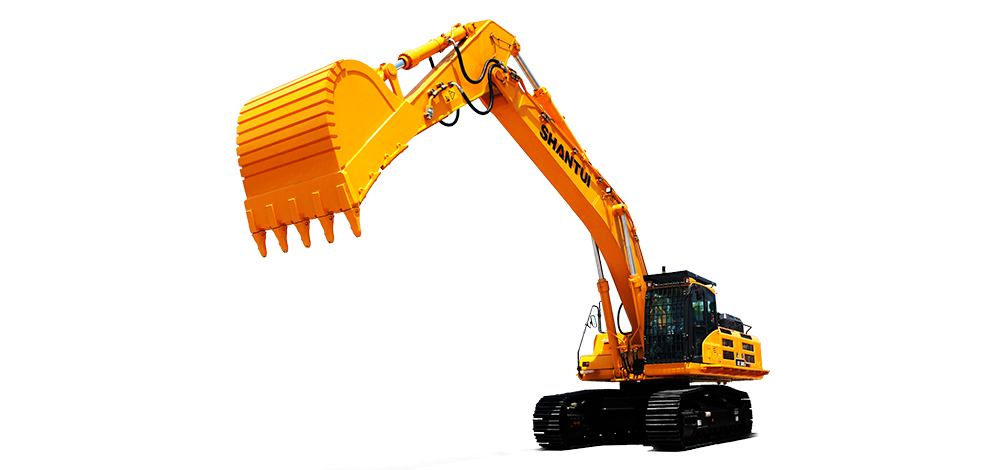

Shantui SE500LC
  • Shantui SE500LC
Large Excavator

Shantui SE500LC

  • 49500kg
    Operating weight
  • 280/2000kW/rpm
    Engine power
  • 2.8m³
    Bucket capacity
View Complete Details
  • Overview
  • Specifications
Overview

Configuration selling point

With its core configuration incorporating a customized Cummins engine and high-end hydraulic components, complemented by a positive-flow control system, the machine ensures stable performance and reliable quality.

Ease of maintenance and operation comfort

The machine comes standard with a 10.1-inch touchscreen display and one-touch intelligent start function, providing enhanced human-machine interaction. The fuel filters and oil filters are centrally positioned at a remote location, facilitating easy maintenance and reducing costs.

Adaptability to diverse working conditions

The machine is equipped with Shantui’s world-class four wheels and one track system, double support rollers, fully protected track chains, and mining structural components. It is extensively utilized in diverse work environments such as mining, water conservancy, and road and bridge construction.
Specifications
Operating weight 49500kg
Engine power 280/2000kW/rpm
Bucket capacity 2.8m³
External dimensions 12210*3450*3995mm
Bucket rod digging force 285kN
Bucket digging force 305kN
Rotating speed 0-9r/min
Travel speed 3.3/5.6km/h
Maximum digging height 10460mm
Maximum digging distance 11580mm
Maximum digging depth 7335mm
Emissions Eu stage IIIAIndicated as per international standards
