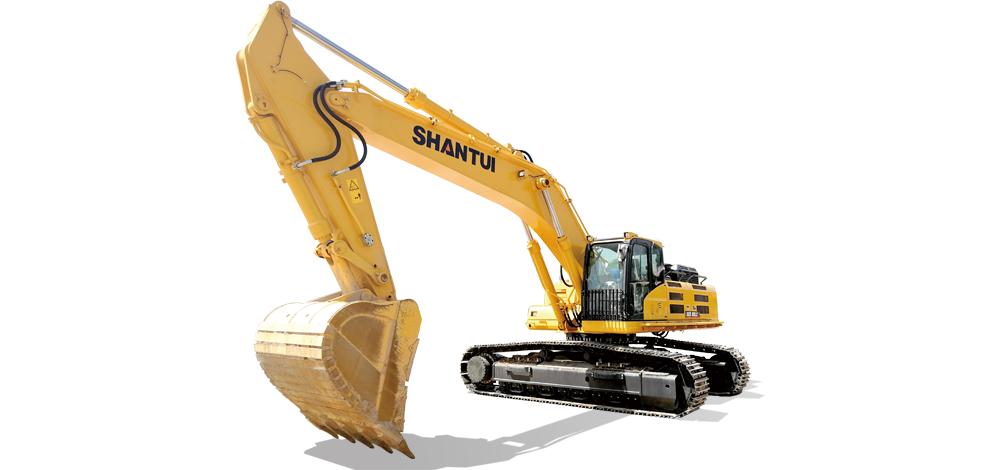

Shantui SE550LCW
  • Shantui SE550LCW
Large Excavator

Shantui SE550LCW

  • 55000kg
    Operating weight
  • 562/1900kW/rpm
    Engine power
  • 3.2m³
    Bucket capacity
View Complete Details
  • Overview
  • Specifications
Overview

Configuration selling point

The machine is equipped with a customized Weichai P13H high-pressure common rail s, delivering high power, robust performance, rapid response, and excellent fuel economy.

Ease of maintenance and operation comfort

The machine comes standard with a 10.1-inch touchscreen display and one-touch intelligent start function, providing enhanced human-machine interaction. The standard configuration also includes an intelligent control hydraulic variable-speed fan with a reverse blowing function, providing greater convenience for radiator cleaning.

Adaptability to diverse working conditions

With heavy-duty mining attachments, a mining-specific reinforced chassis, and Shantui’s world-class four wheels and one track, the machine is extensively utilized in earthwork projects and large-scale mining sites.
Specifications
Operating weight 55000kg
Engine power 562/1900kW/rpm
Bucket capacity 3.2m³
External dimensions 12060*3450*4030mm
Bucket rod digging force 285kN
Bucket digging force 310kN
Rotating speed 0-8.7r/min
Travel speed 3.3/5.6km/h
Maximum digging height 10335mm
Maximum digging distance 11475mm
Maximum digging depth 7120mm
Emissions Eu stage IIIAIndicated as per international standards
