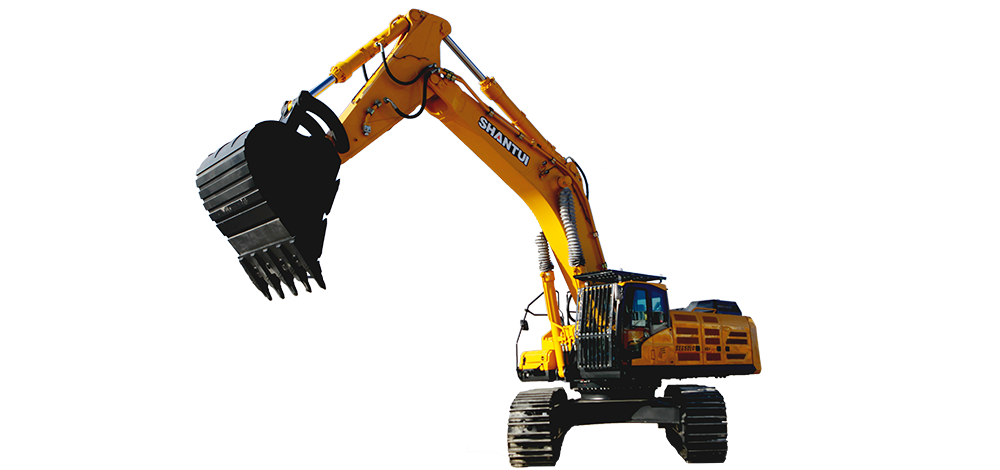

Shantui SE600HW
  • Shantui SE600HW
Large Excavator

Shantui SE600HW

  • 55000kg
    Operating weight
  • 562/1900kW/rpm
    Engine power
  • 3.2m³
    Bucket capacity
View Complete Details
  • Overview
  • Specifications
Overview

Configuration selling point

Equipped with the exclusively customized Weichai WP14T engine, the machine offers a large power reserve and robust power. It is paired with the industry’s largest main pump, guaranteeing rapid response, stable performance, and outstanding fuel efficiency.

Ease of maintenance and operation comfort

The machine comes standard with a 10.1-inch touchscreen display and one-touch intelligent start function, providing enhanced human-machine interaction. It is equipped with an extra-large capacity fuel filter elements and a high-precision triple-stage whole-process filter element, both of which are centrally positioned near the left-side door for easy maintenance.

Adaptability to diverse working conditions

With heavy-duty mining attachments, a mining-specific reinforced chassis, and Shantui’s world-class four wheels and one track, the machine is extensively utilized in earthwork projects and large-scale mining sites.
Specifications
Operating weight 55000kg
Engine power 562/1900kW/rpm
Bucket capacity 3.2m³
External dimensions 12060*3450*4030mm
Bucket rod digging force 285kN
Bucket digging force 310kN
Rotating speed 0-8.7r/min
Travel speed 3.3/5.6km/h
Maximum digging height 10335mm
Maximum digging distance 11475mm
Maximum digging depth 7120mm
Emissions Eu stage IIIAIndicated as per international standards
