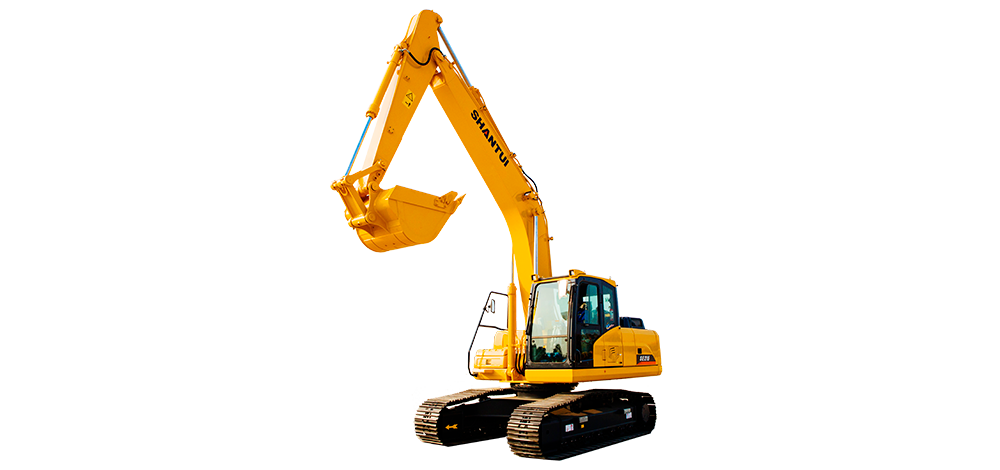

Configuration selling point
The machine is equipped with a dedicated large-displacement engine and a precisely calibrated electronic control positive-flow hydraulic system, resulting in higher operational efficiency.Ease of maintenance and operation comfort
The machine is equipped with a 10.1-inch intelligent touchscreen that integrates various functions. It features a fully injection-molded interior, and is equipped with a high-power air conditioner, providing a comfortable driving and riding experience. The spacious maintenance area allows for easy access during inspections and maintenance.Adaptability to diverse working conditions
The reinforced design of structural components ensures high reliability. The machine offers an easy combination with booms, bucket rods, buckets, and other attachments of varying specifications to adapt to diverse working conditions.| Operating weight | 21900kg |
| Engine power | 124/2050kW/rpm |
| Bucket capacity | 1.05m³ |
| External dimensions | 9605*2980*3070mm |
| Bucket rod digging force | 99/107kN |
| Bucket digging force | 137/148kN |
| Rotating speed | 0-11r/min |
| Travel speed | 3.3/5.1km/h |
| Maximum digging height | 10100mm |
| Maximum digging distance | 9865mm |
| Maximum digging depth | 6490mm |
| Emissions | Eu stage IIIAIndicated as per international standards |
