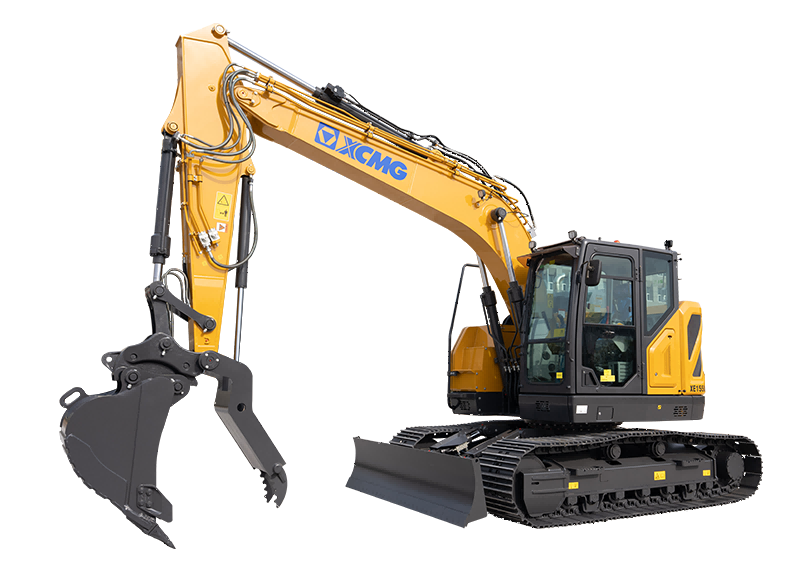

The newly engineered XE155UCR builds on its reputation as one of the most sold and appreciated mid size excavators of XCMG. All systems have been designed on the basis of harmonious matching of sufficient power, hydraulic flow, versatility, low fuel consumption and mostly impor-tantly the swing tail has been reduce to meet operations in confined spaces.
| Operating weight | 16800Kg |
| Rated power | 90kW/rpm |
| Engine model | Cummins B4.5 |
| Bucket capacity | 0.6m³ |
| Emission standard | Tier 4 Final |
| Maximum torque/speed | 500/1500N.m |
| Displacement | 3.8L |
| Travel speed | 4.7/2.9km/h |
| Swing speed | 11.3r/min |
| Bucket digging force | 106.9kN |
| Arm digging force | 73.4kN |
