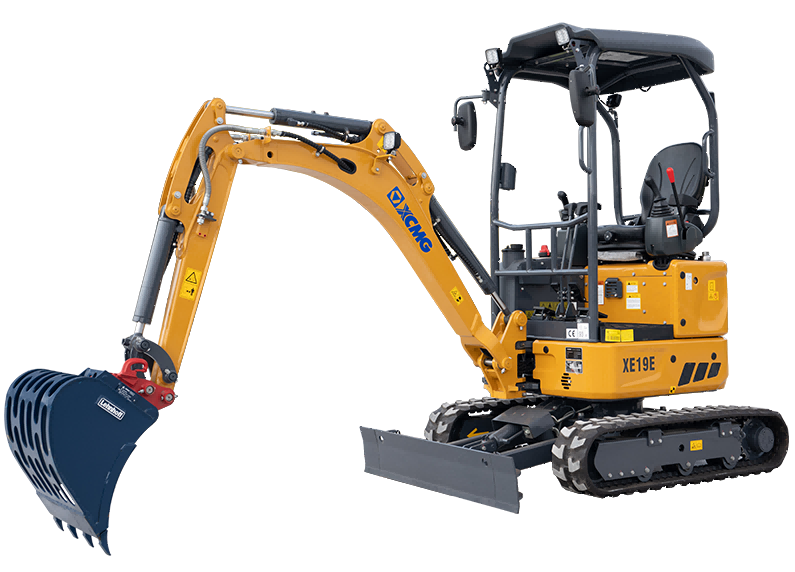

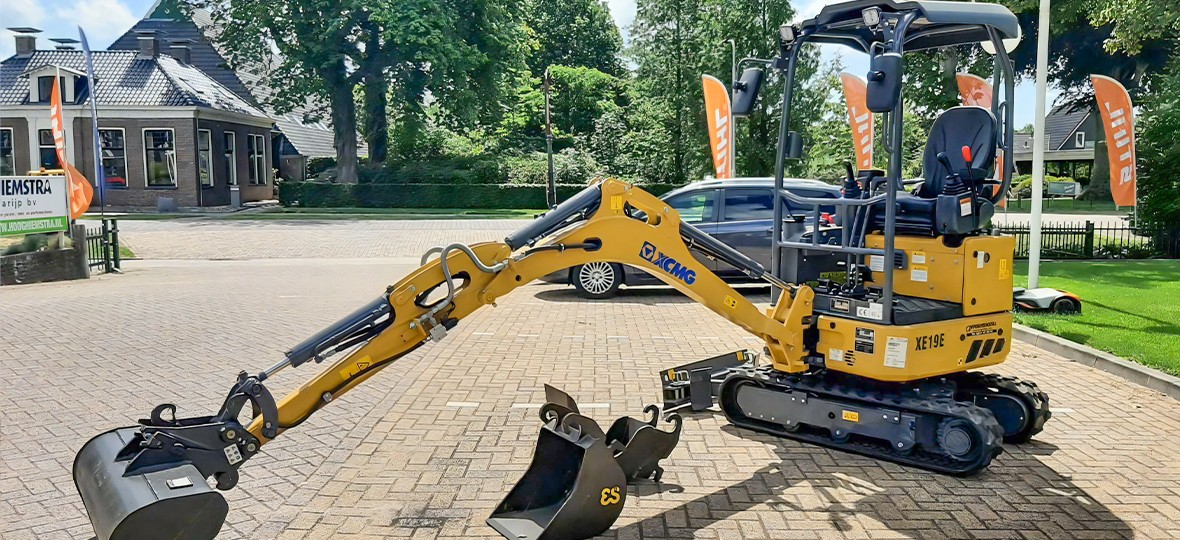

With a mechanical injection oil engine of Euro V emission standards used, XE19E has high reliability, environmental emission, and excellent performance. Combined with multiple-function operation accessories, it can complete tasks of digging, loading, leveling, trenching, crushing, drilling, shearing, lifting, etc., and is widely used in construction and production fields of hydropower, transportation, municipal administration, garden, farmland transformation and oil pipeline. The reversible walking pedal plate is equipped to realize compound operations of the working device and the walking device. Additionally, the hidden layout of chassis pipeline makes the pipeline more protective when working under bad conditions.
| Operating weight | 1900Kg |
| Rated power | 15.4kW/rpm |
| Engine model | Kubota D1105 |
| Bucket capacity | 0.04m³ |
| Emission standard | Euro V |
| Maximum torque/speed | 70.3/1600N.m |
| Displacement | 1.123L |
| Travel speed | 4.2/2.2km/h |
| Swing speed | 10r/min |
| Bucket digging force | 16kN |
| Arm digging force | 10kN |
