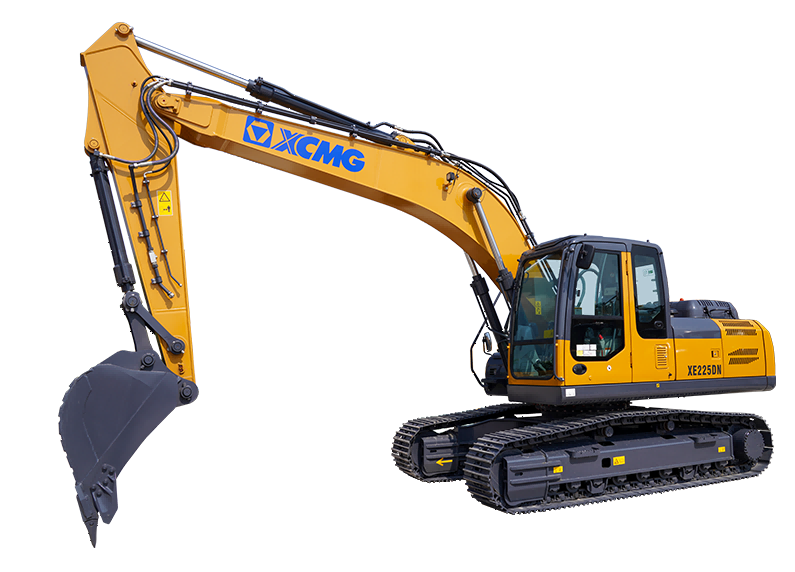

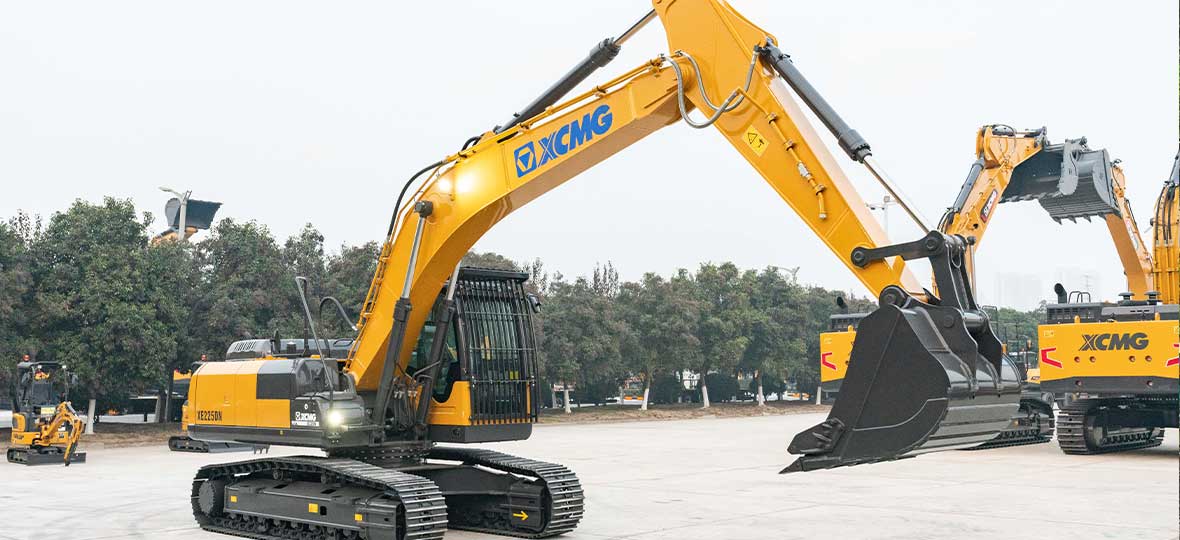

With the Perkins high-power engine, XCMG proprietary and exclusive technology used, XE225DN features with low speed and high torque, high-pressure injection, and can realize stronger power and better fuel economy. New high-efficiency main pump is fully upgraded, with large displacement, 7% higher than that of the previous generation. The turntable side beam uses the D-tube structure to improve its ability of resisting external impact. XE225DN can be used for irrigation and water conservancy, river dredging, municipal construction and small mine construction, realizing different operations such as digging, breaking and dismantling.
| Operating weight | 22500Kg |
| Rated power | 106kW/rpm |
| Engine model | Perkins 1104D-E44TA |
| Bucket capacity | 1m³ |
| Emission standard | National Stage Ⅲ |
| Maximum torque/speed | 516/1400N.m |
| Displacement | 4.4L |
| Travel speed | 5.3/3.1km/h |
| Swing speed | 11.8r/min |
| Bucket digging force | 149kN |
| Arm digging force | 111kN |
