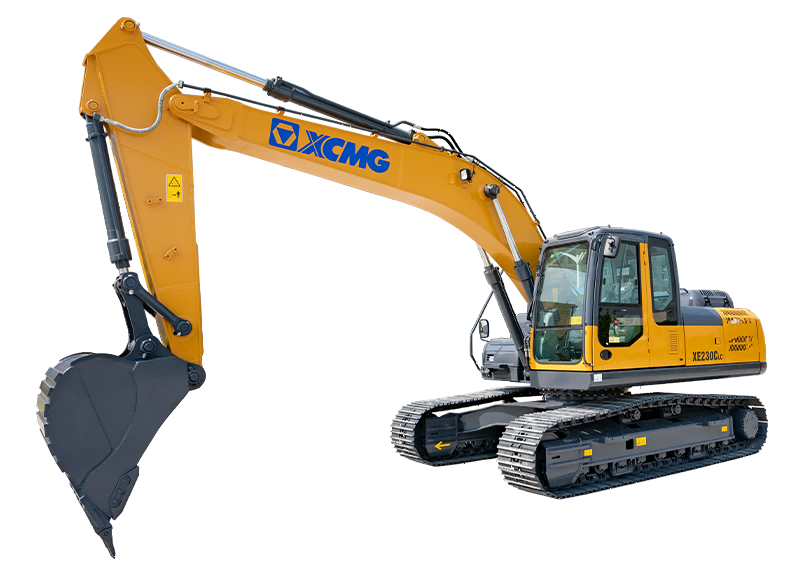

With imported 128.5kW high-power engine and XCMG exclusive technology, XE230CLC features low speed and high torque, high-pressure injection, stronger power and better fuel economy. New high-efficiency main pump is fully upgraded, its displacement is 7% higher than the previous generation. The fuel efficiency ratio of XE230C is ahead of other models in its tonnage class. XE230CLC, with an L-shaped extended chassis used, is characterized by good operation stability. With strengthened working device and high-capacity rock bucket, XE230CLC is used for small- and medium-mines, irrigation and water conservancy, river dredging and municipal construction, realizing different operations such as digging, crushing, and dismantling.
| Operating weight | 23000Kg |
| Rated power | 128.5kW/rpm |
| Engine model | ISUZU CC-6BG1TRP |
| Bucket capacity | 1m³ |
| Emission standard | National Stage Ⅱ |
| Maximum torque/speed | 637.9/1800N.m |
| Displacement | 6.494L |
| Travel speed | 5.5/3.3km/h |
| Swing speed | 13.2r/min |
| Bucket digging force | 149kN |
| Arm digging force | 111kN |
