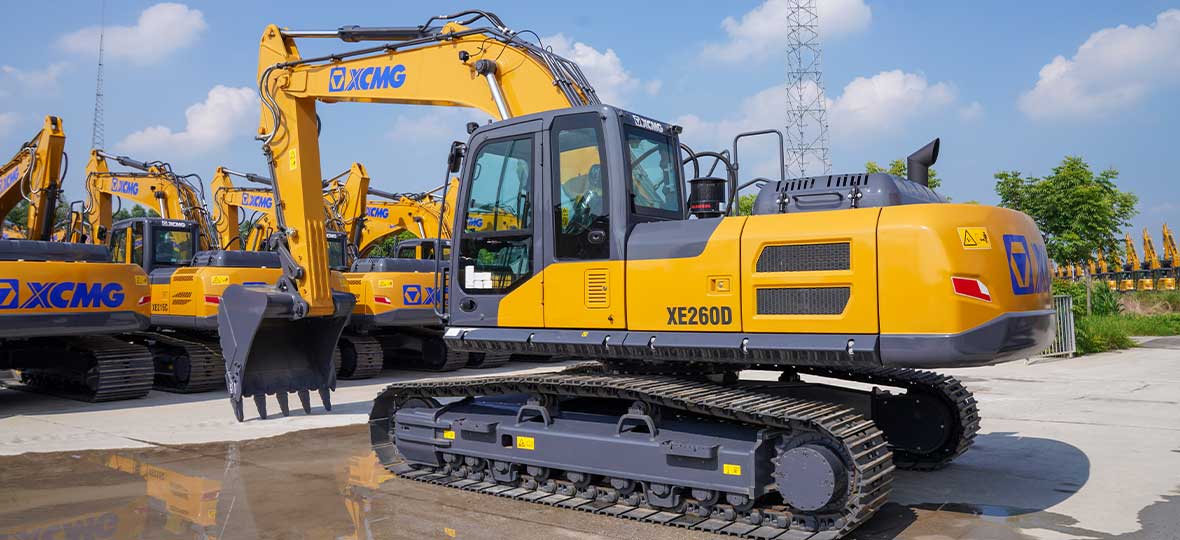

New generation hydraulic components have higher efficiency, more accurate control and high reliability with combination of latest research achievements so that reliable strong digging force and excellent operating efficiency of XE260D are ensured. With optimized engine power curves and low speed large torque output, the fuel consumption is greatly reduced while providing strong power, which satisfies dynamic balance and economy of power output and fuel consumption in heavy-load mode. Different boom and bucket combinations maximize utilization of different conditions. Multi-functional machine system meets various job requirements such as digging and crushing. Additionally, it has easy serviceability and comfortable operator compartment.
| Operating weight | 25800Kg |
| Rated power | 150kW/rpm |
| Engine model | Cummins QSB7 |
| Bucket capacity | 1.3m³ |
| Emission standard | National Stage Ⅲ |
| Maximum torque/speed | 825/1250N.m |
| Displacement | 6.7L |
| Travel speed | 5.3/3.6km/h |
| Swing speed | 11.2r/min |
| Bucket digging force | 185kN |
| Arm digging force | 129kN |
