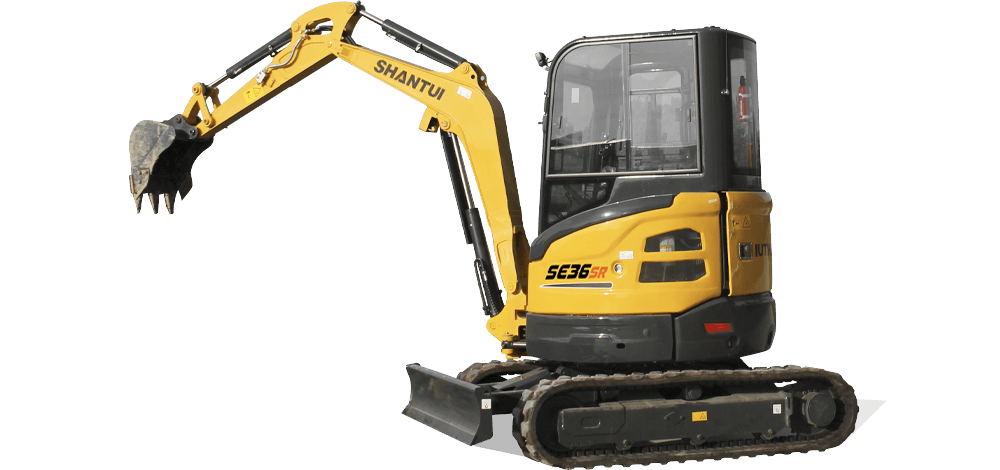

Shantui SE36SR
  • Shantui SE36SR
Mini Excavator

Shantui SE36SR

  • 3800kg
    Operating weight
  • 18.2/2200kW/rpm
    Engine power
  • 0.12m³
    Bucket capacity
View Complete Details
  • Overview
  • Specifications
Overview

Configuration selling point

An industry top-tier brand engine delivers robust power. The machine is equipped with a load-sensitive control hydraulic system that operates at high system pressure, ensuring exceptional efficiency, as well as smooth and synchronized actions.

Ease of maintenance and operation comfort

The machine is equipped with the mechanical suspension seat, the high-power hot air system, and the 7-inch LCD touchscreen. The all-hydraulic pilot control features excellent maneuverability and allows for easy maintenance.

Adaptability to diverse working conditions

The standard configuration includes zero-tail swing and boom swing functions. The machine is equipped with several sets of optional attachment pipelines to meet the requirements of diverse working conditions.
Specifications
Operating weight 3800kg
Engine power 18.2/2200kW/rpm
Bucket capacity 0.12m³
External dimensions 4880*1740*2550mm
Bucket rod digging force 18.2kN
Bucket digging force 30.4kN
Rotating speed 0-9r/min
Travel speed 2.4/4.4km/h
Maximum digging height 4910mm
Maximum digging distance 5500mm
Maximum digging depth 3075mm
Emissions EU stage V/T4FIndicated as per international standards
