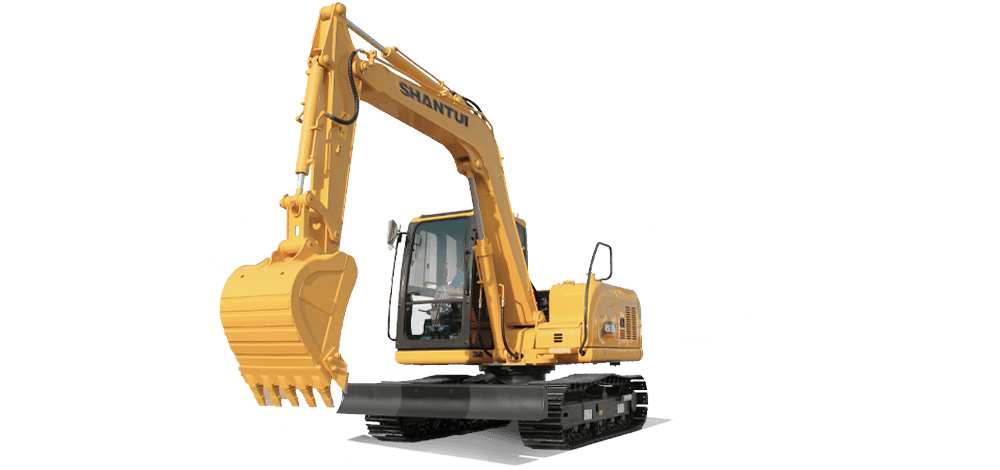

Shantui SE85
  • Shantui SE85
Small Excavator

Shantui SE85

  • 8350kg
    Operating weight
  • 48.9/2000kW/rpm
    Engine power
  • 0.35m³
    Bucket capacity
View Complete Details
  • Overview
  • Specifications
Overview

Configuration selling point

The machine is equipped with an internationally renowned engine known for its high power and efficient, environmentally friendly, and energy-saving performance. The load-sensitive, constant-power, and electro-proportional control hydraulic system ensures the provision of appropriate pressure and constant flow based on the load demand, with reduced energy loss.

Ease of maintenance and operation comfort

The fully openable engine hood is equipped with a positioning mechanism, allowing for effortless and safe opening. The spacious engine compartment provides convenient access for maintenance. Refilling windshield washer fluid, replacing air filters, and accessing the main power switch are all easily accessible. The diesel pre-filter is conveniently located on the right-side door to facilitate easy maintenance.

Adaptability to diverse working conditions

With its heavy weight, the machine demonstrates good stability. It is equipped with hydraulic cylinders with a large diameter to provide large digging force, and features the industry’s largest bucket capacity. The machine offers multiple preset working modes, enabling its versatile application in diverse working conditions, including excavation, leveling, crushing, and lifting operations.
Specifications
Operating weight 8350kg
Engine power 48.9/2000kW/rpm
Bucket capacity 0.35m³
External dimensions 6455*2306*2710mm
Bucket rod digging force 45kN
Bucket digging force 68kN
Rotating speed 11.5r/min
Travel speed 2.9/4.4km/h
Maximum digging height 7175mm
Maximum digging distance 6600mm
Maximum digging depth 4295mm
Emissions Eu stage IIIAIndicated as per international standards
