| Type | No. | Item | Code | Unit | Data |
|---|
| Identification | 1.01 | Manufacturer |
|
| LONKING |
|---|

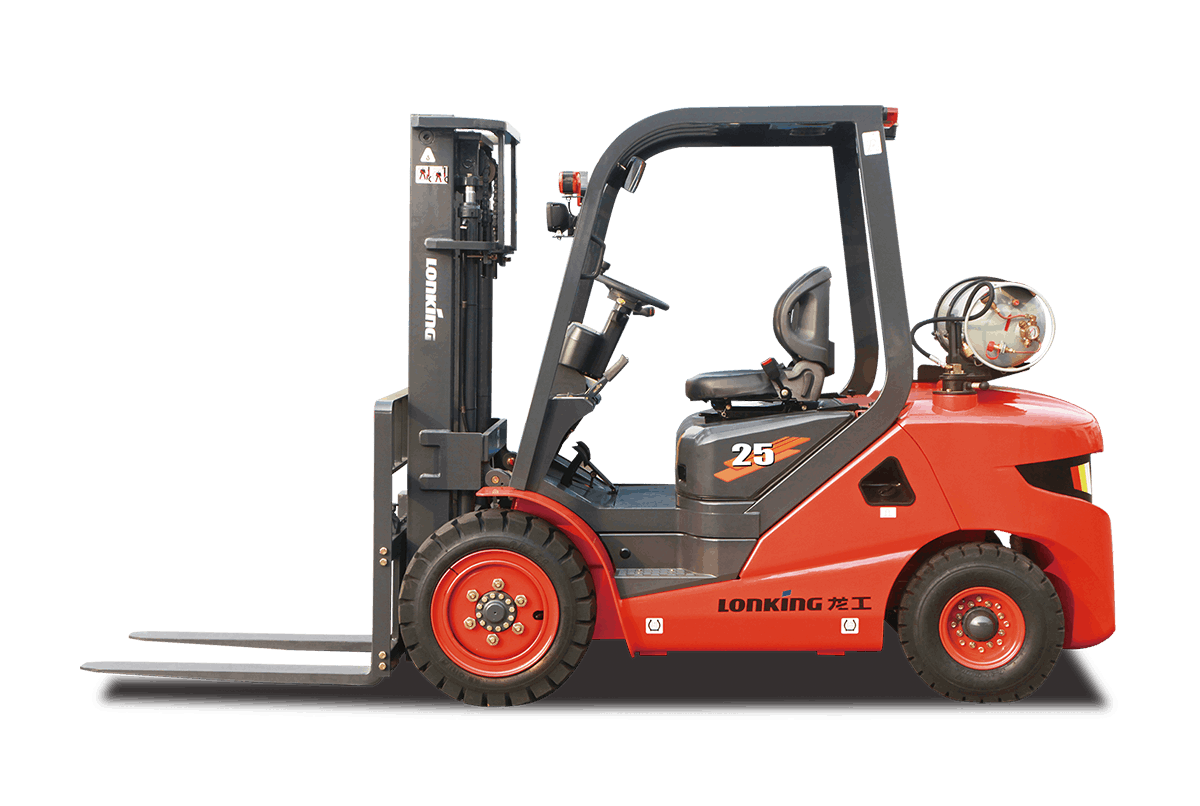

| 1.02 | Model |
|
| LG15GLT | LG20GLT | LG25GLT | LG30GLT | LG35GLT |
| 1.03 | Power type |
|
| Gasoline/LPG |
| 1.04 | Rated capacity | Q | kg | 1500 | 2000 | 2500 | 3000 | 3500 |
| 1.05 | Load center | J | mm | 500 | 500 | 500 | 500 | 500 |
| Dimensions | 2.01 | STD Max height (with backrest) |
| mm | 3906 | 3965 | 3965 | 4210 | 4210 |
|---|
| 2.02 | STD Max lifting height | h1 | mm | 3000 | 3000 | 3000 | 3000 | 3000 |
| 2.03 | Overhead guard height | h4 | mm | 2090 | 2130 | 2130 | 2150 | 2150 |
| 2.04 | Overall length (with fork) | L1 | mm | 3180 | 3670 | 3670 | 3850 | 3880 |
| 2.05 | Wheelbase | L2 | mm | 1400 | 1650 | 1650 | 1750 | 1750 |
| 2.06 | Front overhang | L3 | mm | 410 | 448 | 448 | 487 | 498 |
| 2.07 | Rear overhang | L4 | mm | 425 | 500 | 500 | 550 | 580 |
| 2.08 | Min.ground clearance (Frame/Mast) | m1/m2 | mm | 100/110 | 160/135 | 160/135 | 165/132 | 165/131 |
| 2.09 | Overall width | W1 | mm | 1090 | 1165 | 1165 | 1250 | 1250 |
| 2.10 | Adjusting range of fork (outside) |
| mm | 226-970 | 240-1040 | 240-1040 | 255-1055 | 255-1055 |
| 2.11 | STD Fork size (L5*W*T) |
| mm | 920×100×35 | 1070×120×40 | 1070×120×40 | 1070×122×45 | 1070×122×50 |
| 2.12 | Front wheel tread | S | mm | 890 | 980 | 980 | 1030 | 105300 |
| 2.13 | Rear wheel tread | P | mm | 870 | 2300 | 2300 | 980 | 980 |
| 2.14 | Min.turning radius | R1 | mm | 1950 | 3950 | 3950 | 2520 | 2530 |
| 2.15 | Min aisle width for pallet 1000×1200,crossways |
| mm | 3630 | 4148 | 4148 | 4200 | 4225 |
| 2.16 | Min aisle width for pallet 800×1200,lengthways |
| mm | 3760 | 1070×120×40 | 1070×120×40 | 4407 | 4428 |
| Tires | 3.01 | Wheels number, front/rear (X=driven wheels) |
|
| X=2/2 |
|---|
| 3.02 | Tires type |
|
| Pneumatic |
| 3.03 | Tires size, front |
|
| 6.5-10-10PR | 7.00-12-12PR | 7.00-12-12PR | 6.50-10-10PR | 6.50-10-10PR |
| 3.04 | Tires size, rear |
|
| 5.00-8-10PR | 6.00-9-10PR | 6.00-9-10PR | 28×9-15-14PR | 28×9-15-14PR |
| Other Details | 4.01 | Max.traveling speed, loaded/unloaded |
| km/h | 14/15 | 18.5/20 | 18.5/20 | 18.5/20 | 18.5/20 |
|---|
| 4.02 | Max.lifting speed, loaded/unloaded |
| mm/s | 480/500 | 480/510 | 480/510 | 450/485 | 450/485 |
| 4.03 | Lowering speed, loaded/unloaded |
| mm/s | Loaded≤600/Unloaded≥300 |
| 4.04 | Max.gradient, loaded/unloaded |
| % | 20 | 20 | 20 | 20 | 20 |
| 4.05 | STD operating weight (with oil & water) |
| kg | 2900 | 3310 | 3550 | 4180 | 4650 |
| 4.06 | Axles loading,front/rear (loaded) |
| kg | 3960/440 | 4725/525 | 5490/610 | 6520/640 | 7265/865 |
| 4.07 | Axles loading,front/rear (unloaded) |
| kg | 1160/1740 | 1300/1950 | 1440/2160 | 1680/2480 | 1760/2870 |
| 4.08 | Service brake |
|
| Power brake-pedal |
| 4.09 | Parking brake |
|
| Mechanical-hand brake lever |
| 4.10 | Drive type |
|
| Hydraulic gearbox with electric reversing |
| 4.11 | Fuel tank capacity |
| L | 41 | 50 | 50 | 60 | 60 |
| 4.12 | Battery votage/capacity |
| V/Ah | 12/60 | 12/80 |
