| Type | No. | Item | Code | Unit | Data |
|---|
| Identification | 1.01 | Manufacturer |
|
| LONKING |
|---|

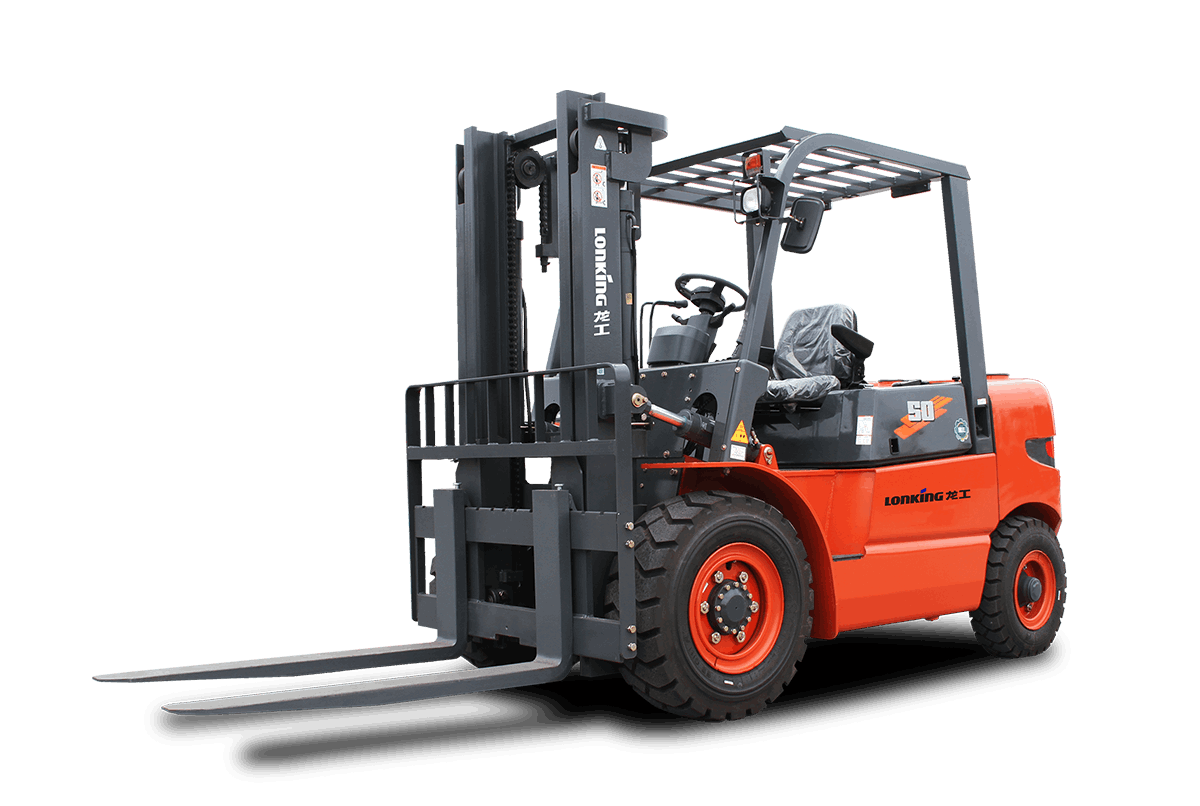

| 1.02 | Model |
|
| LG40DT Ⅳ | LG45DT Ⅳ | LG50DT Ⅳ |
| 1.03 | Power type |
|
| Diesel |
| 1.04 | Rated capacity | Q | kg | 4000 | 4500 | 5000 |
| 1.05 | Load center | J | mm | 500 | 500 | 500 |
| Dimensions | 2.01 | STD Max height (with backrest) |
| mm | 4708 | 4708 | 4708 |
|---|
| 2.02 | STD Max lifting height | h1 | mm | 3000 | 3000 | 3000 |
| 2.03 | Overhead guard height | h4 | mm | 2250 | 2250 | 2250 |
| 2.04 | Overall length (with fork) | L1 | mm | 4245 | 4265 | 4309 |
| 2.05 | Wheelbase | L2 | mm | 2100 | 2100 | 2100 |
| 2.06 | Front overhang | L3 | mm | 555 | 555 | 555 |
| 2.07 | Rear overhang | L4 | mm | 540 | 540 | 585 |
| 2.08 | Min.ground clearance (Frame/Mast) | m1/m2 | mm | 215/170 | 215/170 | 215/170 |
| 2.09 | Overall width | W1 | mm | 1480 | 1480 | 1480 |
| 2.10 | Adjusting range of fork (outside) |
| mm | 300-1340 | 300-1340 | 300-1340 |
| 2.11 | STD Fork size (L5*W*T) |
| mm | 1070×150×55 |
| 2.12 | Front wheel tread | S | mm | 1180 | 1180 | 1180 |
| 2.13 | Rear wheel tread | P | mm | 1190 | 1190 | 1190 |
| 2.14 | Min.turning radius | R1 | mm | 2830 | 2860 | 2900 |
| 2.15 | Min aisle width for pallet 1000×1200,crossways |
| mm | 4485 | 4515 | 4555 |
| 2.16 | Min aisle width for pallet 800×1200,lengthways |
| mm | 4685 | 4715 | 4755 |
| Tires | 3.01 | Wheels number, front/rear (X=driven wheels) |
|
| X=2/2 |
|---|
| 3.02 | Tires type |
|
| Pneumatic |
| 3.03 | Tires size, front |
|
| 8.25-15-14PR | 300-15-20PR |
| 3.04 | Tires size, rear |
|
| 7.00-12-12PR |
| Other Details | 4.01 | Max.traveling speed, loaded/unloaded |
| km/h | 21/24 | 21/24 | 21/24 |
|---|
| 4.02 | Max.lifting speed, loaded/unloaded |
| mm/s | 460/500 | 460/500 | 460/500 |
| 4.03 | Lowering speed, loaded/unloaded |
| mm/s | Loaded ≤ 600/Unloaded ≥ 300 |
| 4.04 | Max.traction, loaded |
| KN | 30 | 30 | 30 |
| 4.05 | Max.gradient, loaded/unloaded |
| % | 20/20 | 20/20 | 20/20 |
| 4.06 | STD operating weight (with oil & water) |
| kg | 6530 | 6760 | 7100 |
| 4.07 | Axles loading,front/rear (loaded) |
| kg | 9430/1100 | 10180/1080 | 10850/1250 |
| 4.08 | Axles loading,front/rear (unloaded) |
| kg | 2930/3600 | 2980/3780 | 3050/4050 |
| 4.09 | Service brake |
|
| Power brake-pedal |
| 4.10 | Parking brake |
|
| Mechanical-hand brake lever |
| 4.11 | Drive type |
|
| Automatic |
| 4.12 | Number of gear (front/rear) |
|
| 2/1 |
| 4.13 | Fuel tank capacity |
| L | 90 |
| 4.14 | Battery votage/capacity |
| V/Ah | 2×12/90 |
