| Type | No. | Item | Code | Unit | Data |
|---|

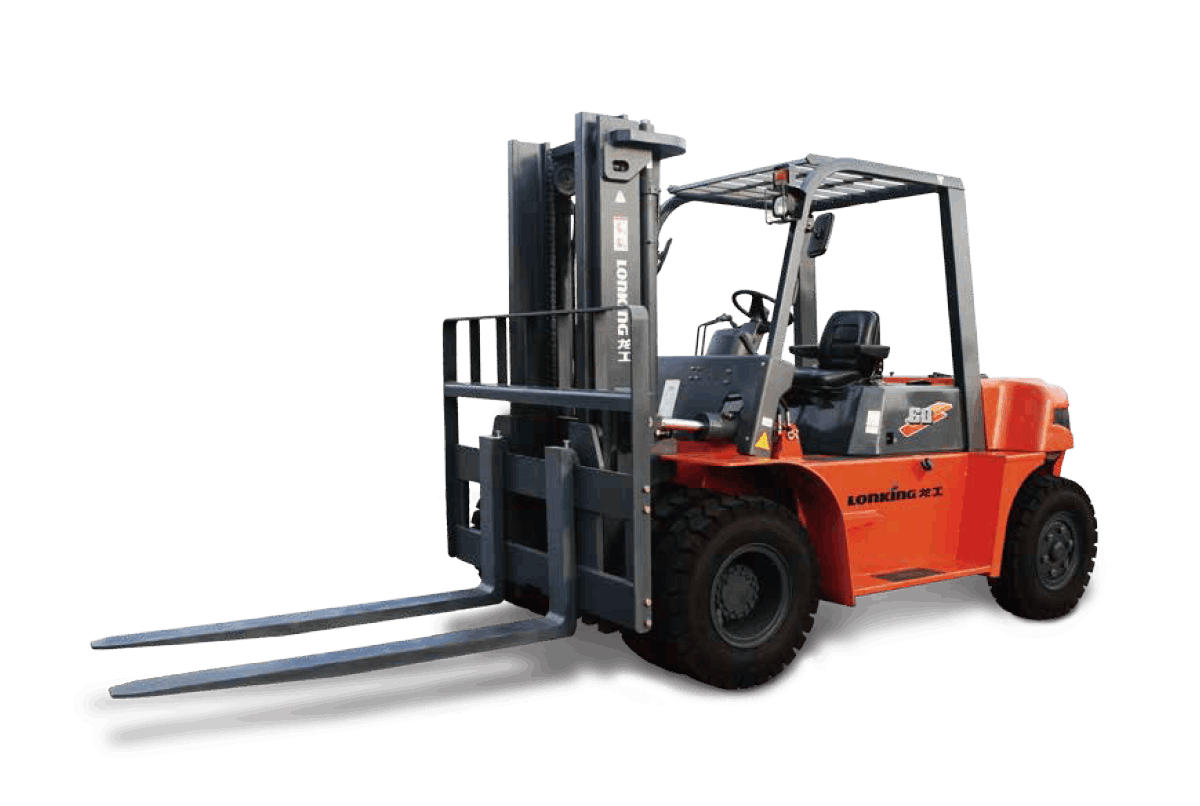

| Identification | 1.01 | Manufacturer |
|
| LONKING |
|---|
| 1.02 | Model |
|
| LG50DT Ⅲ | LG60DT Ⅲ | LG70DT Ⅲ |
| 1.03 | Power type |
|
| Diesel |
| 1.04 | Rated capacity | Q | kg | 5000 | 6000 | 7000 |
| 1.05 | Load center | J | mm | 600 |
| Dimensions | 2.01 | STD Max height (with backrest) |
| mm | 4430 | 4430 | 4430 |
|---|
| 2.02 | STD Max lifting height | h1 | mm | 3000 | 3000 | 3000 |
| 2.03 | Overhead guard height | h4 | mm | 2450 | 2450 | 2450 |
| 2.04 | Overall length (with fork) | L1 | mm | 4715 | 4790 | 4840 |
| 2.05 | Wheelbase | L2 | mm | 2300 | 2300 | 2300 |
| 2.06 | Front overhang | L3 | mm | 594 | 594 | 599 |
| 2.07 | Rear overhang | L4 | mm | 600 | 675 | 720 |
| 2.08 | Min.ground clearance (Frame/Mast) | m1/m2 | mm | 230/200 | 230/200 | 230/200 |
| 2.09 | Overall width | W1 | mm | 1995 | 1995 | 1995 |
| 2.10 | Adjusting range of fork (outside) |
| mm | 300-1805 | 300-1805 | 300-1805 |
| 2.11 | STD Fork size (L5*W*T) |
| mm | 1220×150×60 | 1220×150×65 |
| 2.12 | Front wheel tread | S | mm | 1470 | 1470 | 1470 |
| 2.13 | Rear wheel tread | P | mm | 1700 | 1700 | 1700 |
| 2.14 | Min.turning radius | R1 | mm | 3240 | 3300 | 3370 |
| 2.15 | Min aisle width for pallet 1000×1200,crossways |
| mm | 5255 | 5315 | 5385 |
| 2.16 | Min aisle width for pallet 800×1200,lengthways |
| mm | 5255 | 5315 | 5385 |
| Tires | 3.01 | Wheels number, front/rear (X=driven wheels) |
|
| X=4/2 |
|---|
| 3.02 | Tires type |
|
| Pneumatic |
| 3.03 | Tires size, front |
|
| 8.25-15-14PR |
| 3.04 | Tires size, rear |
|
| 8.25-15-14PR |
| Other Details | 4.01 | Max.traveling speed, loaded/unloaded |
| km/h | 24/29 | 24/29 | 24/29 |
|---|
| 4.02 | Max.lifting speed, loaded/unloaded |
| mm/s | 510/530 | 510/530 | 500/530 |
| 4.03 | Lowering speed, loaded/unloaded |
| mm/s | 400/390 |
| 4.04 | Max.traction, loaded |
| KN | 63 | 63 | 63 |
| 4.05 | Max.gradient, loaded/unloaded |
| % | 38/20 | 35/20 | 32/20 |
| 4.06 | STD operating weight (with oil & water) |
| kg | 8320 | 8940 | 9540 |
| 4.07 | Axles loading,front/rear (loaded) |
| kg | 11950/1470 | 13350/1750 | 14740/1800 |
| 4.08 | Axles loading,front/rear (unloaded) |
| kg | 4250/4170 | 4100/5000 | 3890/5650 |
| 4.09 | Service brake |
|
| Power brake-pedal |
| 4.10 | Parking brake |
|
| Mechanical-hand brake lever |
| 4.11 | Drive type |
|
| Automatic |
| 4.12 | Number of gear (front/rear) |
|
| 2/2 |
| 4.13 | Fuel tank capacity |
| L | 140 |
| 4.14 | Battery votage/capacity |
| V/Ah | 2×12/90 |
