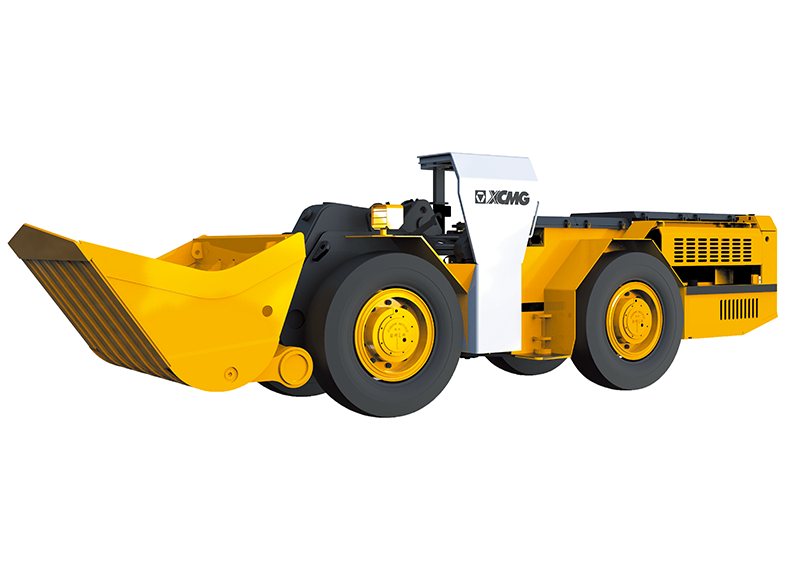

XUL305A underground loader is suitable for loading, hauling and dumping of materials in mine tunnels and other small tunnels in non-explosive environments, and can meet the loading requirements of mining trucks within 15t during underground mining. This machine can adapt to humid and dusty environments of 3m×3m tunnels in underground mines. It is highly intelligent, safe, reliable and stable during operation, which can greatly improve the productivity and profitability of underground mines.
| Rated bucket capacity | 2m³ |
| Rated loading capacity | 5t |
| Maximum breakout force | 103kN |
| Maximum traction force | 140kN |
| Engine | Deutz BF6L914 / Cummins QSB4.5 |
| Emission standard | EU Ⅱ / EU Ⅲ |
| Ratoed power | 112/119kW |
| Maximum traveling speed | 20km/h |
| Minimum turning radius | 2640 / 4956inner side/outer side |
| Transport dimensions | 7280×1810×2010(2160)L×W×H |
| Total weight | 14.2±0.5t |
