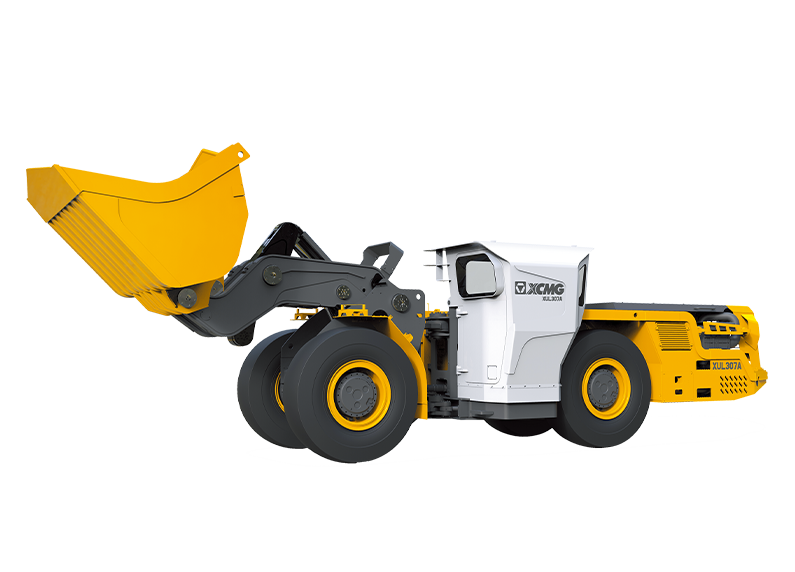

XUL307 underground loader is suitable for loading, hauling and dumping of materials in mine tunnels and other small tunnels in non-explosive environments, and can meet the loading requirements of mining trucks within 20t during underground mining.
This machine can adapt to humid and dusty environments of 3.5m×3.5m tunnels in underground mines. It is highly intelligent, safe, reliable and stable during operation, which can greatly improve the productivity and profitability of underground mines.
| Rated bucket capacity | 3.5m³ |
| Rated loading capacity | 7t |
| Maximum breakout force | 130kN |
| Maximum traction force | 175kN |
| Engine | TAD850VE / TAD880VE |
| Emission standard | EU Ⅲ / EU Ⅴ |
| Ratoed power | 164/160kW |
| Maximum traveling speed | 24km/h |
| Minimum turning radius | 3075(2896) / 5868inner side/outer side |
| Transport dimensions | 8930×2290×2330L×W×H |
| Total weight | 19.8±0.5t |
