PRODUCT FEATURE:

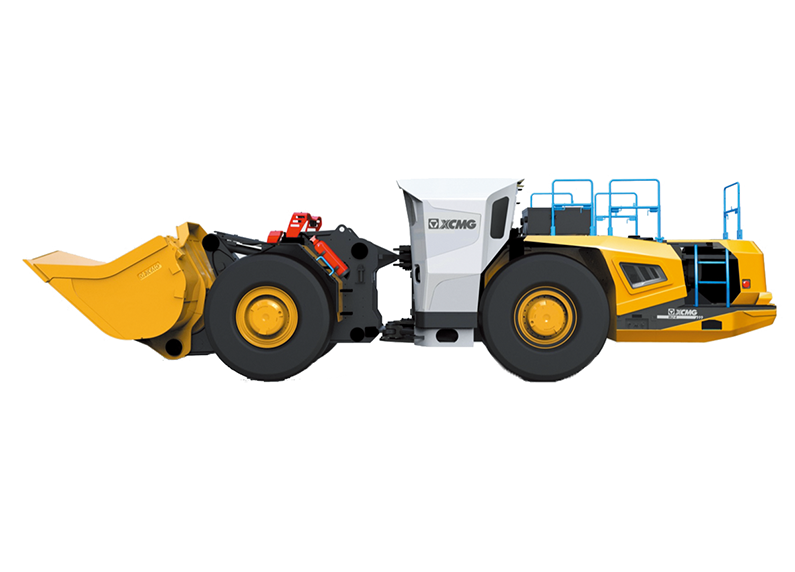

XUL410 underground loader LHD is suitable for loading, hauling and dumping of materials in mine tunnels and other small tunnels in non-explosive environments, and can meet the loading requirements of mining trucks within 30t during underground mining.

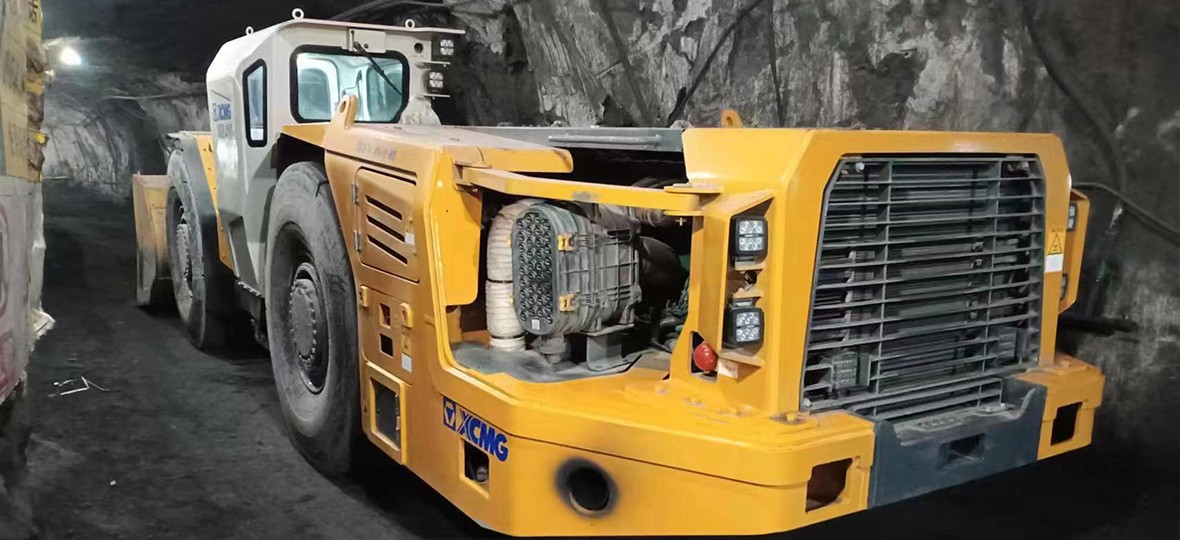

This machine can adapt to humid and dusty environments of 4.1m×4.1m tunnels in underground mines. It is highly intelligent, safe, reliable and stable during operation, which can greatly improve the productivity and profitability of underground mines.
| Rated bucket capacity | 4/4.5m³ |
| Rated loading capacity | 10t |
| Maximum breakout force | 190kN |
| Maximum traction force | 230kN |
| Engine | TAD1150VE / TAD883VE |
| Emission standard | EU Ⅲ / EU Ⅴ |
| Ratoed power | 235kW |
| Maximum traveling speed | 24.5km/h |
| Minimum turning radius | 3270 / 6480inner side/outer side |
| Transport dimensions | 9930×2580×2380L×W×H |
| Total weight | 29.6±0.5t |
