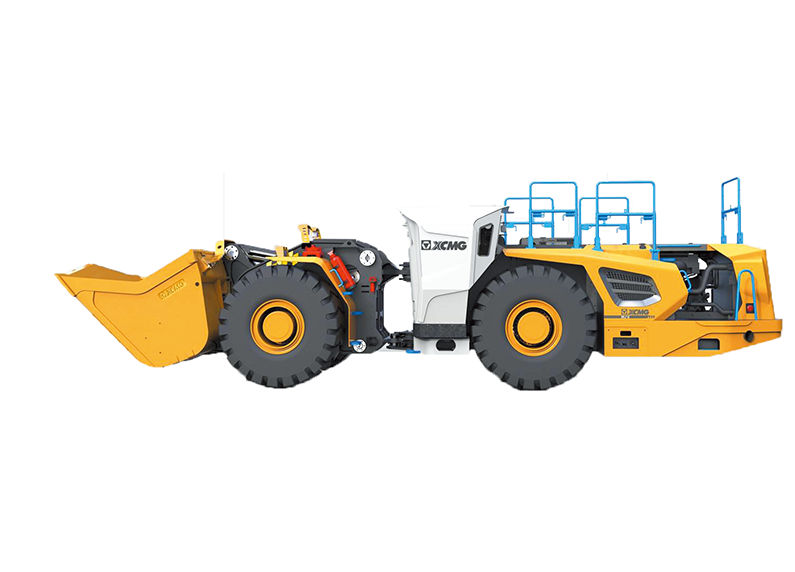

XUL518 underground loader is suitable for loading, hauling and dumping of materials in mine tunnels and other small tunnels in non-explosive environments, and can meet the loading requirements of minging trucks within 52t during underground mining.
This machine can adapt to humid and dusty environments of 5m×5m tunnels in underground mines. It is highly intelligent, safe, reliable and stable during operation, which can greatly improve the productivity and profitability of underground mines.
| Rated bucket capacity | 6m³ |
| Rated loading capacity | 14t |
| Maximum breakout force | 220kN |
| Maximum traction force | 303kN |
| Engine | TAD1351VE |
| Emission standard | EU Ⅲ |
| Ratoed power | 256kW |
| Maximum traveling speed | 20.5km/h |
| Minimum turning radius | 3300 / 6900inner side/outer side |
| Transport dimensions | 11060×2830×2570L×W×H |
| Total weight | 37.8±0.5t |
