PRODUCT FEATURE:

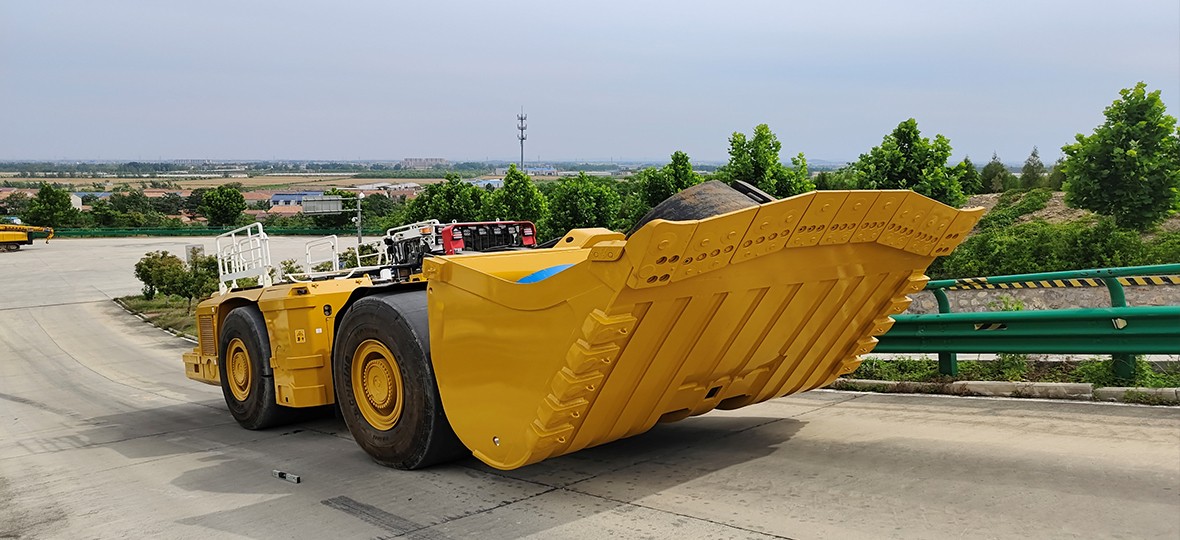

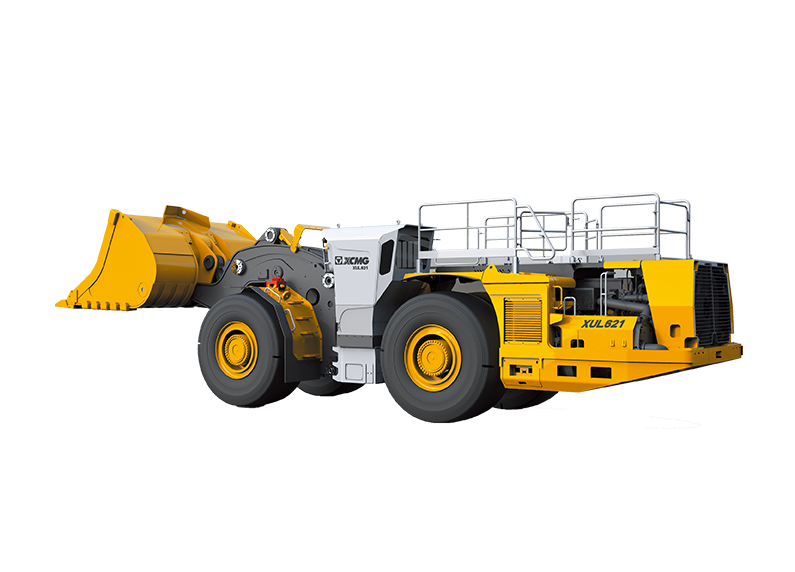

XUL621 underground loader is suitable for loading, hauling and dumping operations of materials in mine tunnels and other small tunnels in non-explosive environments, and can meet the loading requirements of mining trucks within 63t during underground mining.
This machine can adapt to humid and dusty environments of 6m×6m tunnels in underground mines. It is highly intelligent, safe, reliable and stable during operation, which can greatly improve the productivity and profitability of underground mines.
| Rated bucket capacity | 10m³ |
| Rated loading capacity | 21t |
| Maximum breakout force | 354kN |
| Maximum traction force | 431kN |
| Engine | TAD1384VE |
| Emission standard | EU Ⅴ |
| Ratoed power | 375kW |
| Maximum traveling speed | 23.5km/h |
| Minimum turning radius | 3750 / 7990inner side/outer side |
| Transport dimensions | 12520×3380×3000L×W×H |
| Total weight | 60±0.5t |
