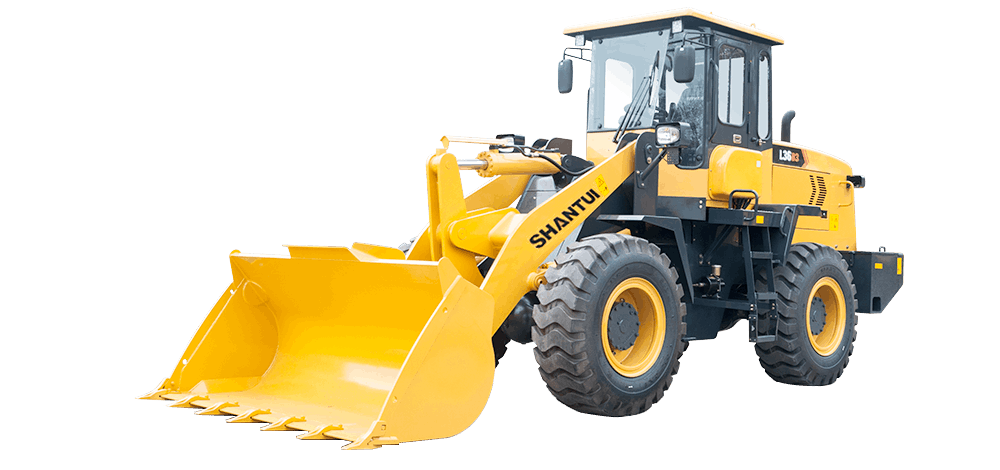

Shantui L36-B3
  • Shantui L36-B3
Wheel Loader

Shantui L36-B3

  • 92kw
    Total power
  • 10600/11000 (*)kg
    Operating weight
  • 1.8/2.5 (*)m³
    Bucket capacity
View Complete Details
  • Overview
  • Specifications
Overview

Configuration selling point

The machine is equipped with a fuel-efficient engine customized by Weichai, an affiliated enterprise within the group, which is optimally matched with the efficient fixed-axis transmission self-developed by Shantui. This combination forms an energy-saving and efficient golden core powertrain that enhances operational efficiency.

Ease of maintenance and operation comfort

All models in the series are equipped with a wide-opening side guard, offering a spacious maintenance area. Air filters, diesel filters, oil filters, and fine transmission filters are all within easy reach, facilitating convenient maintenance.

Adaptability to diverse working conditions

A variety of attachments, including forks, log grapples, and grass trimmers, can be installed to cater to various operational needs in the fields of agriculture, forestry, and construction.
Specifications
Total power 92kw
Operating weight 10600/11000 (*)kg
Bucket capacity 1.8/2.5 (*)m³
External dimensions 7160/7310 (*)×2440×3240mm
Rated loading capacity 3.2t
Maximum dumping height 2990/2950 (*)mm
Dumping distance 980/1090 (*)mm
Subtotal 9.0s
Wheelbase 2700mm
Maximum speed fwd:37, rev:28km/h
Emissions Tier 2 / Stage IIIndicated as per international standards
*:The technical specifications on the left correspond to a wheelloader with a 1.8m³ bucket/The technical specifications on the right correspond to a wheel loader with a 2.5m³ bucket.*
