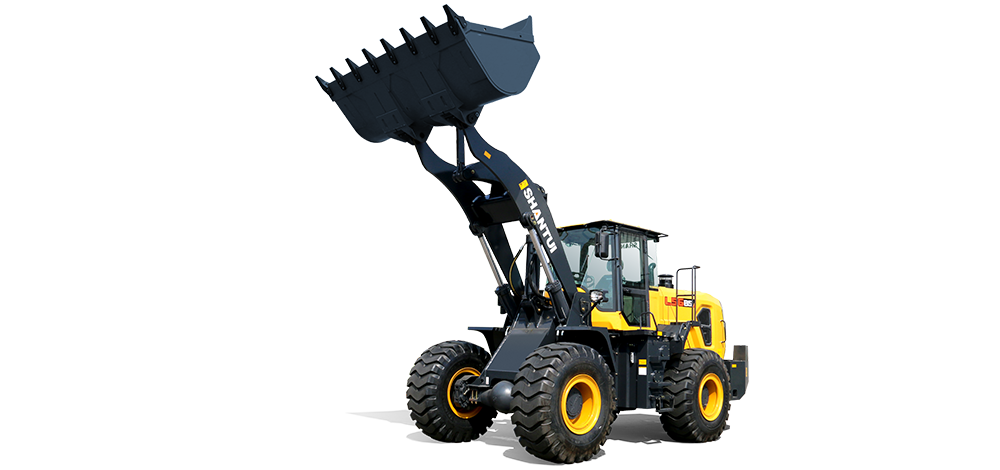

Shantui L56-B5
  • Shantui L56-B5
Wheel Loader

Shantui L56-B5

  • 162kw
    Total power
  • 17100kg
    Operating weight
  • 3m³
    Bucket capacity
View Complete Details
  • Overview
  • Specifications
Overview

Configuration selling point

The WD10 engine customized by Weichai, an affiliated enterprise within the group, is optimally matched with the electronic control transmission self-developed by Shantui. This combination forms an energy-saving and efficient golden core powertrain. During operation, the transmission automatically shifts to a lower gear mode to enhance operational efficiency.

Ease of maintenance and operation comfort

The integrated cab provides 15% more interior space, ensuring better sealing and noise reduction. The placement of air filters and diesel filters on the same side as the engine, along with externally located brake calipers on the drive axle, contributes to easier maintenance.

Adaptability to diverse working conditions

The axle box is reinforced and front and rear frames are strengthened to ensure high load-bearing capacity, making it well-suited for a wide range of operating environments such as earthmoving, coal, ore, and aggregated rocks.
Specifications
Total power 162kw
Operating weight 17100kg
Bucket capacity 3m³
External dimensions 8220×3066×3450mm
Rated loading capacity 5t
Maximum dumping height 3050mm
Dumping distance 1110mm
Subtotal 9.8s
Wheelbase 3250mm
Maximum speed 38km/h
Emissions Eu stageⅡIndicated as per international standards
