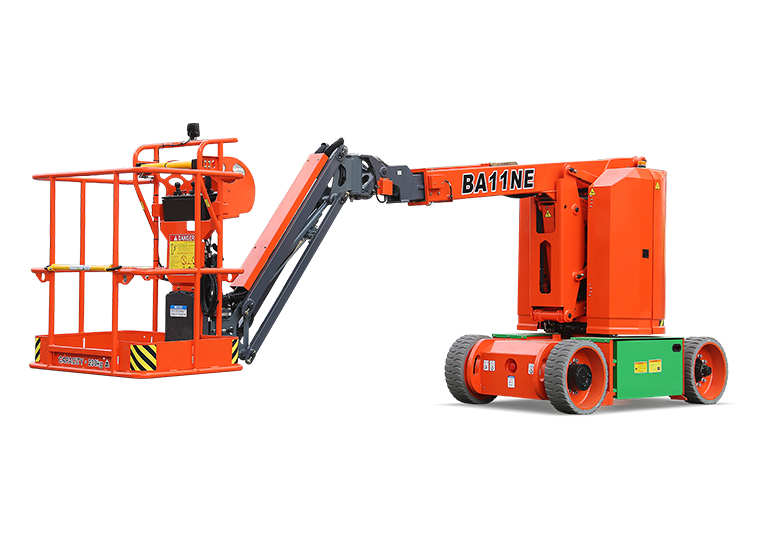

Dingli BA11NE
  • Dingli BA11NE
Articulated Boom Lift

Dingli BA11NE

  • 10.80m/35ft 5in
    Max. Working Height
  • 8.80m/28ft 10in
    Max. Platform Height
  • 6.35m/20ft 10in
    Max. Platform Range
View Complete Details
  • Overview
  • Specifications
Overview

● Drivable at full height, specially designed for narrow and complex tight working conditions.

● 4x2 drive, flexible operation and easy movement.

● With maximum up and over height of 3.8m and maximum horizontal outreach of 6.35m, which ensures strong operation performance.

●  Overall width of the machine is only 1.2m, and stowed height is 2.0m, offering strong passability.

● Self-weight descend technology, with good stability.

● Pure electric drive, no noise, zero emissions, energy-saving and environmentally friendly.


Specifications
Max. Working Height 10.80m/35ft 5in
Max. Platform Height 8.80m/28ft 10in
Max. Platform Range 6.35m/20ft 10in
Max. Up And Over Clearance 3.80m/12ft 6in
Flatbed Transport Dimensions (L×W×H) 5.52m×1.20m×2.00m/18ft 1in×3ft 11in×6ft 7in
Standard Container Transport All Applicable
Platform Size(Length×Width) 0.76m×1.17m/2ft 6in×3ft 10in
Turntable Tailswing 0m/0in
Ground Clearance 0.09m/3in
Wheelbase 1.65m/5ft 5in
S.W.L(Unrestricted/Restricted) 227kg/500lb
Max. Occupants 2/2
Gradeability 35%
Travel Speed(Stowed) 4.8km/h / 2.9mph
Travel Speed(Raised) 0.8km/h / 0.4mph
Max. Working Slope 2.5°/4.5°
Turret Rotation 355°
Platform Rotation 180°
Jib Movement 139°
Turning Radius(Inside/Outside) 1.50m/3.20m / 4ft 11in/10ft 6in
Tyres 22X7
Overall Weight 6660Kg/14682lb
Battery 48V/300Ah
Charger 48V/35A
Driving Motor 2×32VAC/3.3kw
Lifting Motor 30VAC/5.0kw
