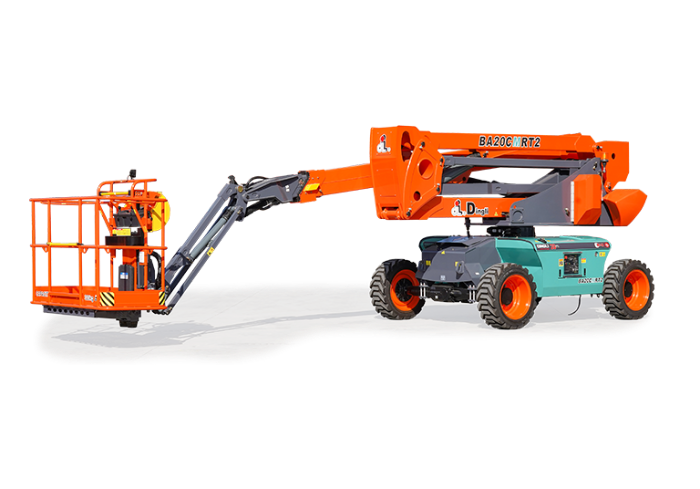

Dingli BA20CMRT2
  • Dingli BA20CMRT2
Articulated Boom Lift

Dingli BA20CMRT2

  • 20.15m/66ft 11in
    Max. Working Height
  • 18.15m/59ft 6in
    Max. Platform Height
  • 11.13m/36ft 6in
    Max. Operating Range(+0.6m)
View Complete Details
  • Overview
  • Specifications
Overview

● Developed by DINGLI’s domestic R&D Center;

● Modular design horizontally & vertically, 85% of the components common in the full range;

● Equipped with integrated axle, four-wheel drive & two-wheel steering;

● Driveable at full height with large load of 320kg;

● Suitable for standard container transport;

● Equipped with 18.2kw low-power engine.

● Battery can be used as a starter battery

● Under normal working conditions, the engine can charge the battery; under complex working conditions, the battery can provide additional torque output.

● Renewable biodiesel can be filled, offering the advantages of high energy saving, more economical, strong power and more eco-friendly


Specifications
Max. Working Height 20.15m/66ft 11in
Max. Platform Height 18.15m/59ft 6in
Max. Operating Range(+0.6m) 11.13m/36ft 6in
Max. Platform Range 10.53m/34ft 6in
Max. Up And Over Clearance 8.18m/26ft 10in
Max. Down Probing Depth 1.25m/4ft 1in
Flatbed Transport Dimensions (L×W×H) 6.41m×2.44mx2.59m/21ft×8ft×8ft 6in
Standard Container Transport All Applicable
Platform Size(Length×Width) 1.83m×0.79m/6ft×2ft 7in
Turntable Tailswing 0.65m/2ft 2in
Ground Clearance 0.31m/1ft
Wheelbase 2.40m/7ft 10in
S.W.L(Unrestricted/Restricted) 320kg/705lb
Max. Occupants 2
Gradeability 40%
Travel Speed(Stowed) 6.0km/h / 3.70mph
Travel Speed(Raised) 1.1km/h / 0.70mph
Max. Working Slope X-5°/Y-5°
Turret Rotation 360°Continuous
Platform Rotation 180°
Jib Movement 132°
Main Boom Maximum Angle 73°
Turning Radius(Inside/Outside) 3m/4.73m / 9ft 10in/15ft 6in
Tyres 315/55D20
Overall Weight 8450kg/18629lb
Battery 80VDC/67.5Ah
Diesel Engine Kubota D1105/18.2kW
Emergency Power System 12V
Diesel Tank 115L/30gal
Hydraulic Tank 145L/38gal
