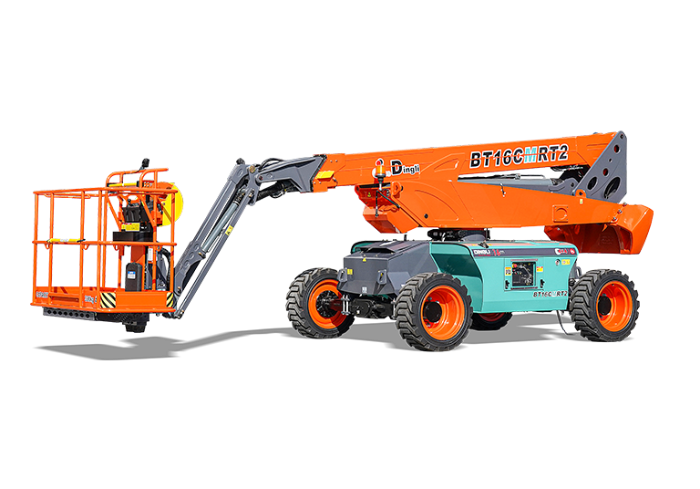

Dingli BT16CMRT2
  • Dingli BT16CMRT2
Articulated Boom Lift

Dingli BT16CMRT2

  • 16.33m/53ft 7in
    Max. Working Height
  • 14.33m/47ft
    Max. Platform Height
  • 9.32m/30ft 7in
    Max. Operating Range(+0.6m)
View Complete Details
  • Overview
  • Specifications
Overview

● Developed by DINGLI’s domestic R&D Center;

● Modular design horizontally & vertically, 85% of the components common in the full range, developed on the same platform;

● Equipped with integrated axle, four-wheel drive & two-wheel steering;

● Driveable at full height with large load of 320kg;

● Suitable for standard container transport;

● Equipped with 18.2kw low-power engine.

● Battery can be used as a starter battery

● Under normal working conditions, the engine can charge the battery; under complex working conditions, the battery can provide additional torque output.

● Renewable biodiesel can be filled, offering the advantages of high energy saving, more economical, strong power and more eco-friendly


Specifications
Max. Working Height 16.33m/53ft 7in
Max. Platform Height 14.33m/47ft
Max. Operating Range(+0.6m) 9.32m/30ft 7in
Max. Platform Range 8.72m/28ft 7in
Flatbed Transport Dimensions (L×W×H) 5.48m×2.44m×2.68m/17ft 12in×8ft×8ft 9in
Standard Container Transport All Applicable
Platform Size(Length×Width) 1.83m×0.79m/6ft×2ft 7in
Turntable Tailswing 1.18m/3ft 10in
Ground Clearance 0.31m/1ft
Wheelbase 2.40m/7ft 10in
S.W.L(Unrestricted/Restricted) 320kg/705lb
Max. Occupants 2
Gradeability 40%
Travel Speed(Stowed) 6.0km/h / 3.70mph
Travel Speed(Raised) 1.1km/h / 0.70mph
Max. Working Slope X-5°/Y-5°
Turret Rotation 360°Continuous
Platform Rotation 180°
Jib Movement 132°
Main Boom Maximum Angle 75°
Turning Radius(Inside/Outside) 3m/4.73m / 9ft 10in/15ft 6in
Tyres 315/55D20
Overall Weight 6700kg/14770lb
Battery 80VDC/67.5Ah
Diesel Engine Kubota D1105/18.2kW
Emergency Power System 12V
Diesel Tank 115L/30gal
Hydraulic Tank 145L/38gal
