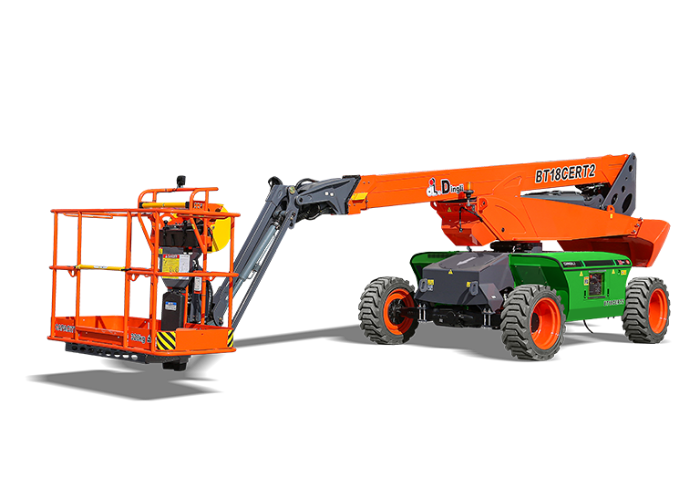

Dingli BT18CERT2
  • Dingli BT18CERT2
Articulated Boom Lift

Dingli BT18CERT2

  • 18.26m/59ft 11in
    Max. Working Height
  • 16.26m/53ft 4in
    Max. Platform Height
  • 11.32m/37ft 2in
    Max. Operating Range(+0.6m)
View Complete Details
  • Overview
  • Specifications
Overview

● Developed by DINGLI’s domestic R&D Center;

● Modular design horizontally & vertically, 85% of the components common in the full range;

● Equipped with integrated axle, four-wheel drive & two-wheel steering;

● Component downward design with lowered center of gravity, lightweight design, energy-saving, more stable;

● Driveable at full height with large load of 320kg;

● Suitable for standard container transport;

● Optionally equipped with 48V320Ah high-capacity lithium battery packs, 1.5-hour fast charging.

Specifications
Max. Working Height 18.26m/59ft 11in
Max. Platform Height 16.26m/53ft 4in
Max. Operating Range(+0.6m) 11.32m/37ft 2in
Max. Platform Range 10.72m/35ft 2in
Flatbed Transport Dimensions (L×W×H) 6.48m×2.44mx2.68m/21ft 3in×8ft×8ft 9in
Standard Container Transport All Applicable
Platform Size(Length×Width) 1.83m×0.79m/6ft×2ft 7in
Turntable Tailswing 1.18m/3ft 10in
Ground Clearance 0.31m/1ft
Wheelbase 2.40m/7ft 10in
S.W.L(Unrestricted/Restricted) 320kg/705lb
Max. Occupants 2
Gradeability 40%
Travel Speed(Stowed) 6.0km/h / 3.70mph
Travel Speed(Raised) 1.1km/h / 0.70mph
Max. Working Slope X-5°/Y-5°
Turret Rotation 360°Continuous
Platform Rotation 180°
Jib Movement 132°
Main Boom Maximum Angle 75°
Turning Radius(Inside/Outside) 3m/4.73m / 9ft 10in/15ft 6in
Tyres 315/55D20
Overall Weight 7750kg/17085lb
Battery 48V/375Ah
Charger 48VDC/60A
Driving Motor 34AC/9kW
Lifting Motor 34VAC/13kW
Emergency Power System 12V
Hydraulic Tank 145L/38gal
