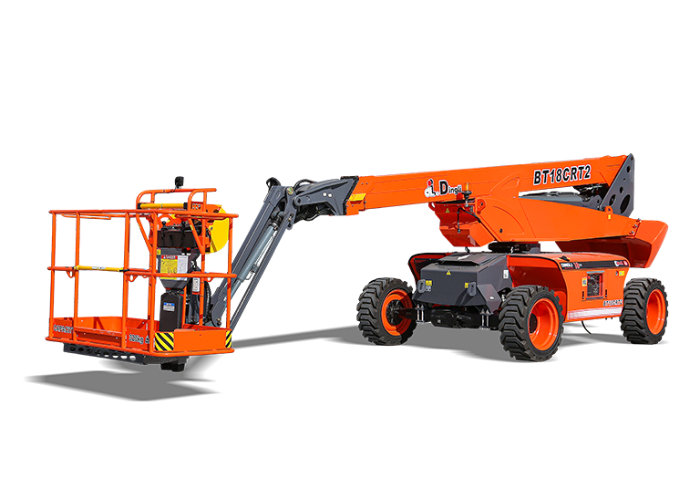

Dingli BT18CRT2

View Complete Details

Overview

● Developed by DINGLI’s domestic R&D Center;

● Modular design horizontally & vertically, 85% of the components common in the full range;

● Equipped with integrated axle, four-wheel drive & two-wheel steering;

● Component downward design with lowered center of gravity, lightweight design, energy-saving, more stable;

● Driveable at full height with large load of 320kg;

● Suitable for standard container transport;

● Equipped with 18.2kw low-power engine.

Specifications

Max. Working Height	18.26m/59ft 11in
Max. Platform Height	16.26m/53ft 4in
Max. Operating Range(+0.6m)	11.32m/37ft 2in
Max. Platform Range	10.72m/35ft 2in
Flatbed Transport Dimensions (L×W×H)	6.48m×2.44mx2.68m/21ft 3in×8ft×8ft 9in
Standard Container Transport	All Applicable
Platform Size(Length×Width)	1.83m×0.79m/6ft×2ft 7in
Turntable Tailswing	1.18m/3ft 10in
Ground Clearance	0.31m/1ft
Wheelbase	2.40m/7ft 10in
S.W.L(Unrestricted/Restricted)	320kg/705lb
Max. Occupants	2
Gradeability	40%
Travel Speed(Stowed)	6.0km/h / 3.70mph
Travel Speed(Raised)	1.1km/h / 0.70mph
Max. Working Slope	X-5°/Y-5°
Turret Rotation	360°Continuous
Platform Rotation	180°
Jib Movement	132°
Main Boom Maximum Angle	75°
Turning Radius(Inside/Outside)	3m/4.73m / 9ft 10in/15ft 6in
Tyres	315/55D20
Overall Weight	7300kg/16093lb
Diesel Engine	Kubota D1105/18.2kW
Emergency Power System	12V
Diesel Tank	115L/30gal
Hydraulic Tank	145L/38gal
