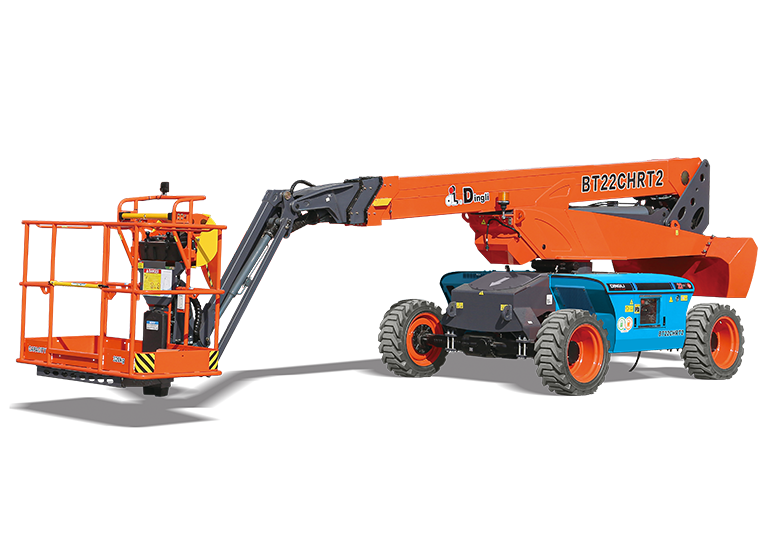

Dingli BT22CHRT2
  • Dingli BT22CHRT2
Articulated Boom Lift

Dingli BT22CHRT2

  • 22.22m/72ft 11in
    Max. Working Height
  • 20.22m/66ft 4in
    Max. Platform Height
  • 15.41m/50ft 7in
    Max. Operating Range(+0.6m)
View Complete Details
  • Overview
  • Specifications
Overview

● Developed by DINGLI’s domestic R&D Center;

● Modular design horizontally & vertically, 85% of the components common in the full range;

● Equipped with integrated axle, four-wheel drive & two-wheel steering;

● Component downward design with lowered center of gravity, lightweight design, energy-saving, more stable;

● Driveable at full height with large load of 320kg;

● Suitable for standard container transport;

● Optionally equipped with 48V280Ah high-capacity lithium battery packs. With a universal range extender, which charges the battery when there is no external power supply.

Specifications
Max. Working Height 22.22m/72ft 11in
Max. Platform Height 20.22m/66ft 4in
Max. Operating Range(+0.6m) 15.41m/50ft 7in
Max. Platform Range 14.81m/48ft 7in
Flatbed Transport Dimensions (L×W×H) 6.75m×2.44m×2.70m/22ft 2in×8ft×8ft 10in
Standard Container Transport All Applicable
Platform Size(Length×Width) 1.83m×0.79m/6ft×2ft 7in
Turntable Tailswing 1.24m/4ft 1in
Ground Clearance 0.31m/1ft
Wheelbase 2.40m/7ft 10in
S.W.L(Unrestricted/Restricted) 320kg/705lb
Max. Occupants 2
Gradeability 35%
Travel Speed(Stowed) 6.0km/h / 3.7mph
Travel Speed(Raised) 1.1km/h / 0.7mph
Max. Working Slope X-5°/Y-5°
Turret Rotation 360°Continuous
Platform Rotation 180°
Jib Movement 132°
Main Boom Maximum Angle 75°
Turning Radius(Inside/Outside) 3m/4.73m / 9ft 10in/15ft 6in
Tyres 315/55D20
Overall Weight 9600kg/21164lb
Battery 48V/300Ah
Charger 48VDC/60A
Driving Motor 34AC/9kW
Lifting Motor 34VAC/13kW
Range Extended Engine Kubota Z482/9.8kW
Emergency Power System 12V
Diesel Tank 90L/23gal
Hydraulic Tank 145L/38gal
