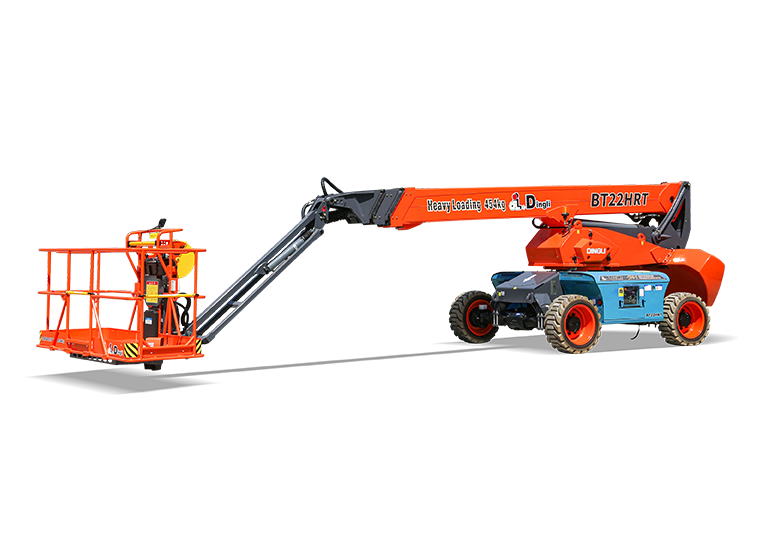

Dingli BT22HRT
  • Dingli BT22HRT
Articulated Boom Lift

Dingli BT22HRT

  • 22.51m/73ft 10in
    Max. Working Height
  • 20.51m/67ft 4in
    Max. Platform Height
  • 17.28m/56ft 8in
    Max. Operating Range(+0.6m)
View Complete Details
  • Overview
  • Specifications
Overview

● Developed by MAGNI, DINGLI’s Italian R&D center;

● Modular design horizontally & vertically, 85% of the components common in the full range, electric / diesel / hybrid models developed on the same platform;

● Equipped with integrated axle, four-wheel drive & steering, 100% hydraulic differential lock, strong power and rough-terrain performance;

● Component downward design with lowered center of gravity;

● Suitable for standard container transport;

● Equipped with 80V420Ah high-capacity lithium battery packs. With a tank of fuel, the built-in range extender, which charges the batteries when there is no external power supply, ensures the machine can be used for up to 30 days.

Reach

Specifications
Max. Working Height 22.51m/73ft 10in
Max. Platform Height 20.51m/67ft 4in
Max. Operating Range(+0.6m) 17.28m/56ft 8in
Max. Platform Range 16.68m/54ft 9in
Overall Length(Stowed) 10.16m/33ft 4in
Overall Length(Transport) 10.36m/34ft
Overall Width(Stowed) 2.50m/8ft 2in
Overall Width(Transport) 2.28m/7ft 6in
Overall Height(Stowed) 2.65m/8ft 8in
Overall Height(Transport) 2.46m/8ft 1in
Platform Size(Length×Width) 2.44m×0.91m/8ft×3ft
Turntable Tailswing 1.19m/3ft 11in
Ground Clearance(Stowed/Raised) 0.28m/11in
Wheelbase 2.40m/7ft 10in
S.W.L(Unrestricted/Restricted) 454kg/1000lb
Max. Occupants 3
Gradeability 30%
Travel Speed(Stowed) 6.0km/h / 3.70mph
Travel Speed(Raised) 1.1km/h / 0.70mph
Max. Working Slope X-5°/Y-5°
Turret Rotation 360°Continuous
Platform Rotation 180°
Jib Movement 135°
Main Boom Maximum Angle 70°
Turning Radius(Inside/Outside) 1.65m/2.62m / 5ft 5in/8ft 7in
Tyres 315/55D20
Overall Weight 13200kg/29101lb
Lithium Battery 80V/320Ah
Emergency Power System 12V
Driving Motor 54VAC/18kW
Range Extended Engine Kubota Z482/9.8kW
Diesel Tank 30L/7.9gal
Hydraulic Tank 165L/43gal
