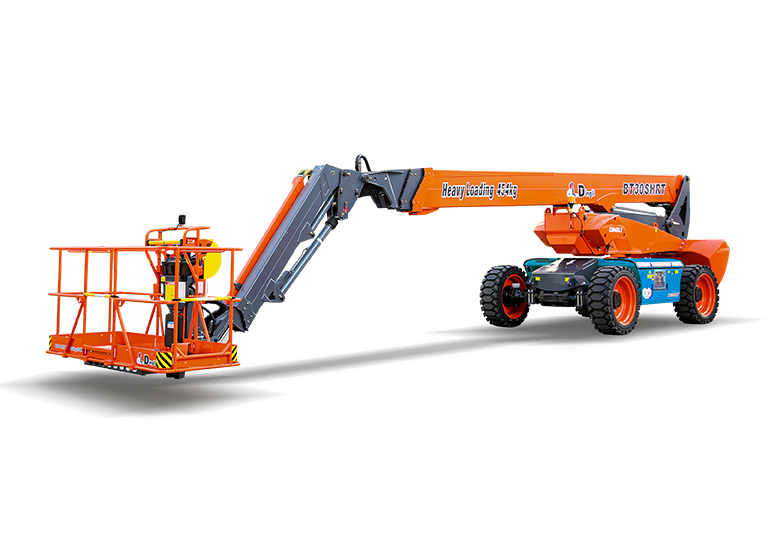

Dingli BT30SHRT
  • Dingli BT30SHRT
Articulated Boom Lift

Dingli BT30SHRT

  • 30.30m/99ft 5in
    Max. Working Height
  • 28.30m/92ft 10in
    Max. Platform Height
  • 23.00m/75ft 6in
    Max. Operating Range(+0.6m)
View Complete Details
  • Overview
  • Specifications
Overview

● Equipped with a telescopic jib;

● Developed by MAGNI, DINGLI’s Italian R&D center;

● Modular design horizontally & vertically, 85% of the components common in the full range, electric / diesel / hybrid models developed on the same platform;

● Equipped with integrated axle, four-wheel drive & steering, 100% hydraulic differential lock, strong power and rough-terrain performance;

● Component downward design with lowered center of gravity;

● Suitable for standard container transport;

● Equipped with 80V420Ah high-capacity lithium battery packs. With a tank of fuel, the built-in range extender, which charges the batteries when there is no external power supply, ensures the machine can be used for up to 30 days.

Reach

Specifications
Max. Working Height 30.30m/99ft 5in
Max. Platform Height 28.30m/92ft 10in
Max. Operating Range(+0.6m) 23.00m/75ft 6in
Max. Platform Range 22.40m/73ft 6in
Overall Length(Stowed) 12.25m/40ft 2in
Overall Length(Transport) 11.96m/39ft 3in
Overall Width(Stowed) 2.50m/8ft 2in
Overall Width(Transport) 2.28m/7ft 6in
Overall Height(Stowed) 2.87m/9ft 5in
Overall Height(Transport) 2.59m/8ft 6in
Platform Size(Length×Width) 2.44m×0.91m/8ft×3ft
Turntable Tailswing 1.61m/5ft 3in
Ground Clearance(Stowed/Raised) 0.41m/1ft 4in
Wheelbase 2.80m/9ft 2in
S.W.L(Unrestricted/Restricted) 300kg/454kg / 661lb/1000lb
Max. Occupants 3
Gradeability 30%
Travel Speed(Stowed) 6.0km/h / 3.70mph
Travel Speed(Raised) 1.1km/h / 0.70mph
Max. Working Slope X-5°/Y-5°
Turret Rotation 360°Continuous
Platform Rotation 180°
Jib Movement 130°
Main Boom Maximum Angle 68°
Turning Radius(Inside/Outside) 1.87m/3.22m / 6ft 2in/10ft 7in
Tyres 385/45-28
Overall Weight 18900kg/41667lb
Lithium Battery 80V/420Ah
Emergency Power System 12V
Driving Motor 54V/18kW
Range Extended Engine Kubota Z482/9.8kW
Diesel Tank 110L/29gal
Hydraulic Tank 165L/43gal
