| Work Height Max. | 17.70m(58'1'') |
| Platform Capacity | 230kg(510lbs) |
| Machine Width | 2.31m(7'7'') |
| Horizontal Outreach | 9.39m(30'10'') |
| Machine Weight | 8180kg(18034lbs) |

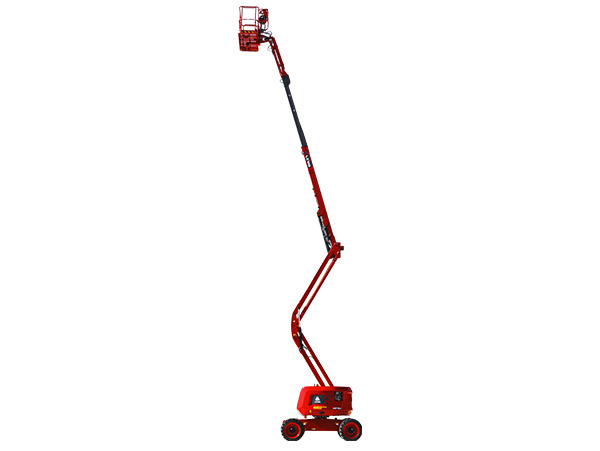

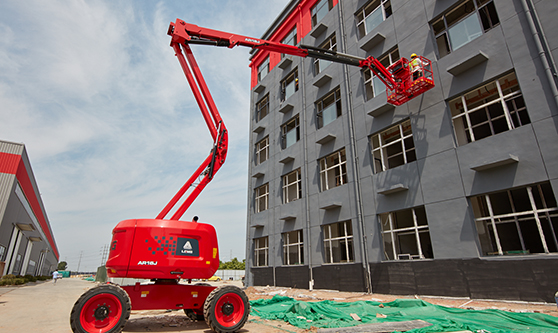

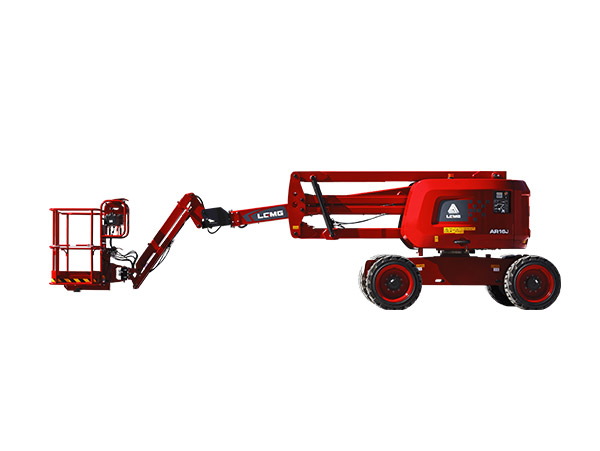

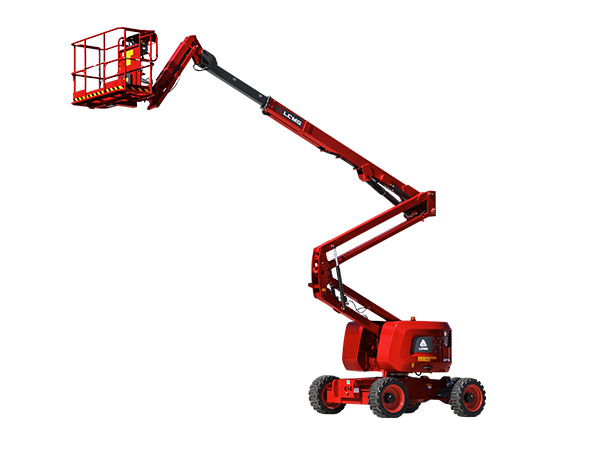

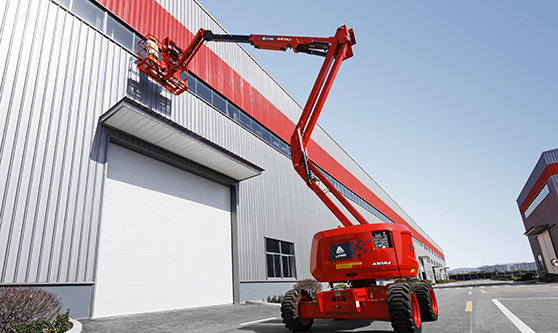

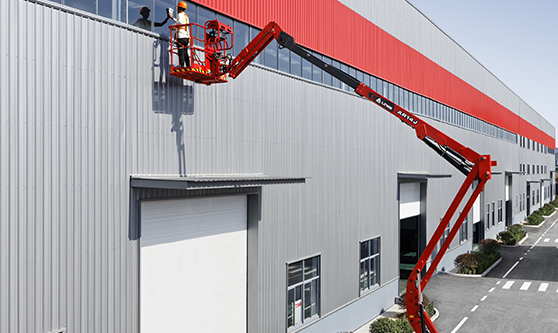

LGMG AR Series articulating boom lifts are purpose built for outdoor construction and industrial applications. Simple and reliable design with industrial features make this machine easy to operate. A standard jib offers the ability to reach even the most hard to reach places.
l The oscillating axels and four-wheel drive deliver better gradeability on rough terrain.
l Proportional smooth driving, precise positioning and comfortable operation.
l Self-leveling platform together with hydraulic platform rotation delivers exceptional productivity.
l Swing out engine tray for easy access and maintenance.
l Intelligent self-diagnostic system for quick troubleshooting.
Standard features
Proportional control
Tilt alarm with lift cut-out
Overload sensing system
Descent alarm with flashing beacon
Platform tool box
Emergency stop button
On-board diagnostic system
Oscillating axle
Four-wheel drive and break
Over tilt protection system
Anti-collision protection
Horn/Hour meter
Full-height drive
Telematics connector
Platform auto-leveling system
RT Foam-filled tires
Options
Telematics
AC power to platform
Hydraulic generator kit
Cold weather package
Auxiliary rail
Solid tires
Foam-filled non-marking tires
Solid non-marking tires
Half-height mesh platform
Biodegradable hydraulic oil
| Work Height Max. | 17.70m(58'1'') |
| Platform Capacity | 230kg(510lbs) |
| Machine Width | 2.31m(7'7'') |
| Horizontal Outreach | 9.39m(30'10'') |
| Machine Weight | 8180kg(18034lbs) |
