| Work Height Max. | 21.58m(70'9'') |
| Platform Capacity | 260/350kg(573/772lbs) |
| Machine Width | 2.5m(8'2'') |
| Horizontal Outreach | 12.37m(40'7'') |
| Machine Weight | 9850kg(21715lbs) |

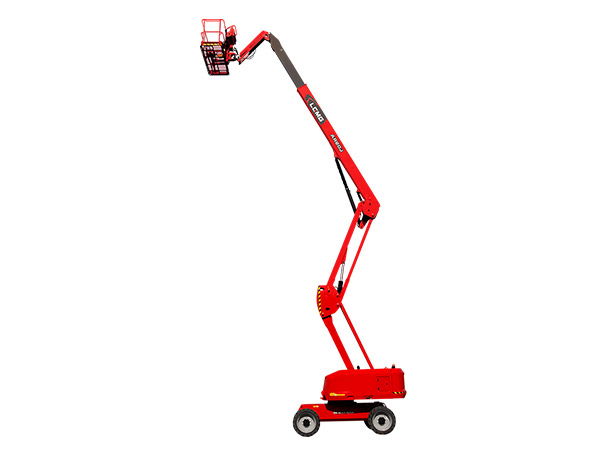

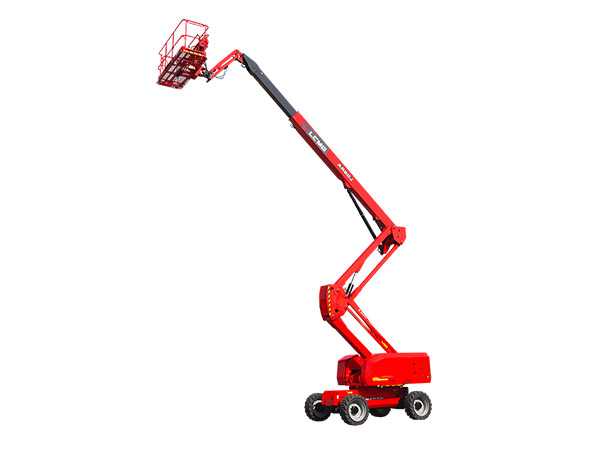

LGMG AR20J articulating boom lifts is perfect for both outdoor and indoor construction work.
l 260/350kg (573 Ibs/772 Ibs) dual-capacity design, 2.44m (8') triple entry platform.
l Oscillating, full-time floating axels allow the wheels to grip to the ground when driving on hard, uneven terrain.
l Integrated four-wheel-drive system provides strong power, smooth transmission, and
45% gradeability.
l Equipped with three steering modes: four-wheel steering, crab steering, and front-wheel steering, and equipped with one-touch wheel alignment.
l Proportional lift and drive controls deliver smoother maneuvering, precise positioning
and comfortable operation.
Standard features
RT Foam-filled tires
Flashing beacons
Horn//Hour meter
Oscillating axle
Platform tool box
Cylinder bellows
Telematics connector
Auto-leveling platform
Emergency stop device
Anti-collision protection
Platform control cover
Over tilt protection system
Overload sensing system
Intelligent diagnostic system
Proportional control
Full-height drive
Optional
Telematics
AC power to platform
Half-height mesh platform
Hydraulic generator kit
Cold weather package
3.5kw Hydraulic generator
Auxiliary rail
Solid tires
Solid non-marking tires
Foam-filled non-marking tires
Half-height mesh platform
Biodegradable hydraulic oil
| Work Height Max. | 21.58m(70'9'') |
| Platform Capacity | 260/350kg(573/772lbs) |
| Machine Width | 2.5m(8'2'') |
| Horizontal Outreach | 12.37m(40'7'') |
| Machine Weight | 9850kg(21715lbs) |
