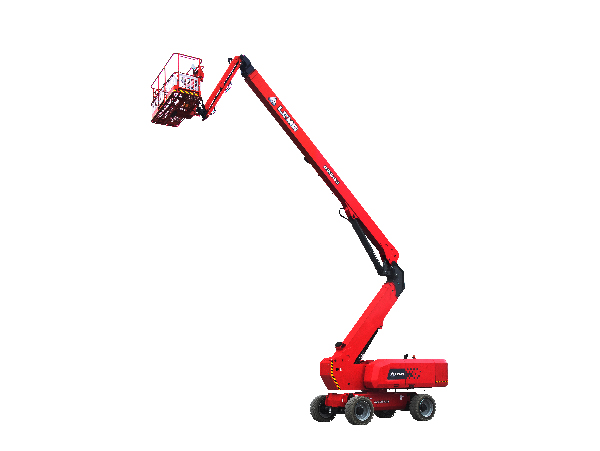

| Work Hight Max. | 26.6m(87'3'') |
| Platform Capacity | 250/350kg(551/772lbs) |
| Machine Width | 2.5m(8'2'') |
| Horizontal Outreach | 18m(59'1'') |
| Machine Weight | 17300kg(38139lbs) |
l Axle-integrated four-wheel drive system, with strong power and smooth transmission.
l Three steering modes: front-wheel, crab and four wheel steering, to meet the demand of operations in narrow space.
l Realize all-round aerial working through booms compound action.
l Full time floating to ensure driving safety.
l Higher anti-torsional strength frame to satisfy container transportation conditions.
Standard features
Proportional control
Emergency stop device
Horn/Hour meter
Auto-leveling platform
Full-height drive
Anti-collision protection
Flashing beacons
Over tilt protection system
Cylinder bellows
Platform control cover
Oscillating axle
Overload sensing system
Platform tool box
Intelligent diagnostic system
Telematics connector
Foam-filled tires
Optional
Telematics
Solid tires
AC power to platform
Solid non-marking tires
Half-height mesh platform
Foam-filled non-marking tires
Auxiliary rail
Biodegradable hydraulic oil
Hydraulic generator kit
3.5kw Hydraulic generator
Cold weather package
| Work Hight Max. | 26.6m(87'3'') |
| Platform Capacity | 250/350kg(551/772lbs) |
| Machine Width | 2.5m(8'2'') |
| Horizontal Outreach | 18m(59'1'') |
| Machine Weight | 17300kg(38139lbs) |
