XCMG XGA16K

16630mm

Working Height
256(unlimited)/350(limited)kg

Lift capacity
7600kg

Weight

View Complete Details

SEND EMAIL

Complete Details

GET LATEST PRICE

QUICK INQUIRY

Overview
Specifications

Overview

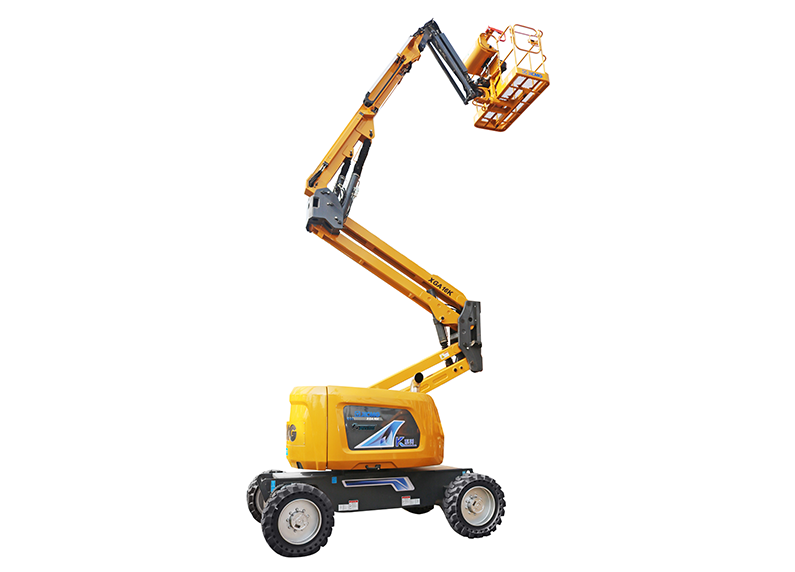

16m (52 ft 6 in) level“ Σ” The Y-shaped linkage folding hybrid arm frame aerial work platform is a compact layout, efficient obstacle crossing, precise design, strong driving, and easy operation curved arm aerial work platform. This model is easy to operate, safe and reliable, precise and efficient, and can widely meet the needs of users in various industries such as construction, steel structures, petrochemicals, venues, and leasing.

Specifications

Working Height	16630mm
Lift capacity	256(unlimited)/350(limited)kg
Weight	7600kg
Overall dimension-Stowed	6850x2320x2380mm
Overall dimension-Transportation	5600x2320x2650mm
Dimension of working platform	1830x760x1150mm
Wheelbase	2360mm
Fly jib length	1420mm
Ground clearance	300mm
Max.Platform height	14.63m
Max.Working range	8.82m
Max.up and over clearance	7.7m
Max.Occupants	2/3
Max.Working slope	X-5°/Y-5°°
1st Boom luffing range	0°～65°°
2nd Boom luffing range	-11°～75°°
Flying jib luffing range	-65°～70°°
Turntable rotation	355°°
Platform rotation	160°°
Drive speed	5.5stowed
Drive speed	0.6Up or extended
Min.Turning radius	3200/4700inside/outside
Turntable tailswing	0stowed
Max.Gradeability	0.45%
