Zoomlion ZA16JERT
  • Zoomlion ZA16JERT
Articulating Boom Lift

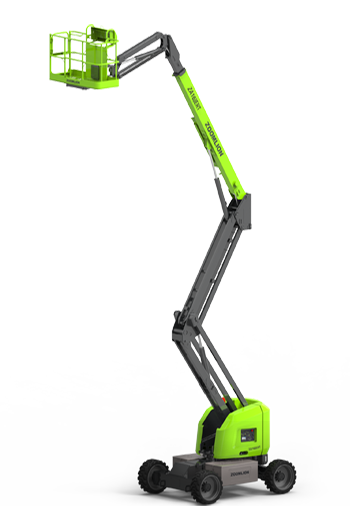

Zoomlion ZA16JERT

  • 17.8m|58ft 5in
    Work Height
  • 15.8m|51ft 10in
    Platform Height
  • 9.72m|31ft 11in
    Horizontal Outreach
View Complete Details
  • Overview
  • Specifications
Overview

RT Electric Articulating Boom Lifts feature strong rough terrainability, providing exceptional off-road performance and quiet working conditions around jobsites.

CE/ANSI Certified






Center layout, great structural rigidity, and small boom deflection

Accurate and efficient traveling AC drive system provides strong power and stable control, motor maintenance-free

Electrical off-road articulating boom lift of 16m height with strong power suits for complicated working conditions

4WD provides strong power, ideal for off-road application

Advanced dual control system (valve control + pump control) offers a energy-saving, smooth and efficient control

Large-capacity lithium battery features long-lasting battery life, and number of charge and discharge cycles reaches 2500 times, the whole life cycle is maintenance-free, and a 5-year warranty is provided (ZA16JERT-Li Only)


Specifications

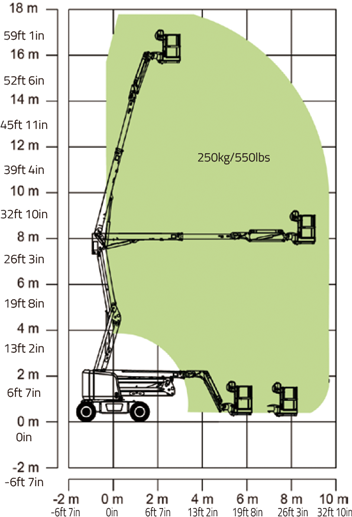

Work Height 17.8m|58ft 5in
Platform Height 15.8m|51ft 10in
Horizontal Outreach 9.72m|31ft 11in
Up and Over Height 8m|26ft 3in

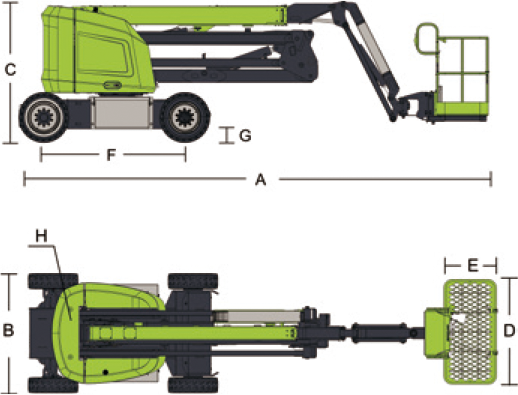

A - Stowed Length 7.7m|25ft 3in
B - Stowed Width 2.3m|7ft 6in
C - Stowed Height 2.23m|7ft 4in
D - Platform Length 1.83m|6 ft
E - Platform Width 0.76m|2ft 6in
F - Wheelbase 2.36m|7ft 9in
G - Ground Clearance 0.36m|1ft 2in
Platform Capacity 250kg|550 lb
Drive Speed 5.5 km/h|3.4 mph
Gradeability 45%(24°)|45%(24°)
Axles Oscillation 0.20m|8in
Turning Radius (Inside) 2.06m|6ft 9in
Turning Radius (Outside) 4.78m|15ft 8in
Turntable Swing 360° non-continuous|360° non-continuous
Platform Rotation ±90°|±90°
H-Tail Swing 0.2m|0.6ft
Max. Working Slope 5°|5°
Max. Wind Speed 12.5m/s|28mph
Battery 24×2V/320Ah|24×2V/320Ah
Charger 48V/60A|48V/60A
Drive Motor AC 32V|AC 32V
Lift Motor AC 32V|AC 32V
Auxiliary Power 12V DC Electrical pump|12V DC Electrical pump
Hydraulic Tank Capacity 30L|7.9 (us gal)
Type 33×12 Foam-filled tire|33×12 Foam-filled tire
Gross 7300kg|16093lb
