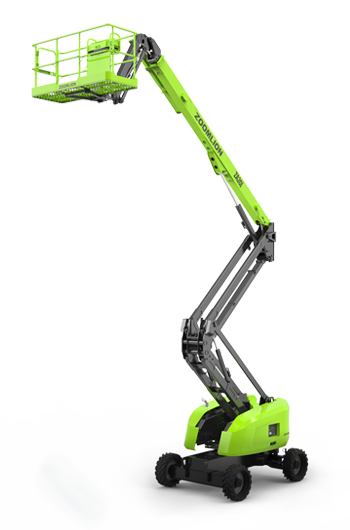

Zoomlion ZA20J
  • Zoomlion ZA20J
Articulating Boom Lift

Zoomlion ZA20J

  • 21.38m|70ft 1in
    Work Height
  • 19.38m|63ft 7in
    Platform Height
  • 12.3m|40ft 4in
    Horizontal Outreach
View Complete Details
  • Overview
  • Specifications
Overview

Diesel powered articulating boom lifts for precise position and extreme flexibility.

CE/ANSI/CSA Certified






250/360kg platform capacity for higher efficiency

Build-in multiple pressure control leveling system to enhance stability

Precise load sensing system to improve overload safety operations

Integrated with rotary reducer to enhance rotation stability

Hostile Kits available for dusty working environment

Deadweight Lowering System for smooth operation and energy efficiency

Platform fast lifting function provides high-efficient performance without tower boom operation

Lightweight design, low energy consumption


Specifications

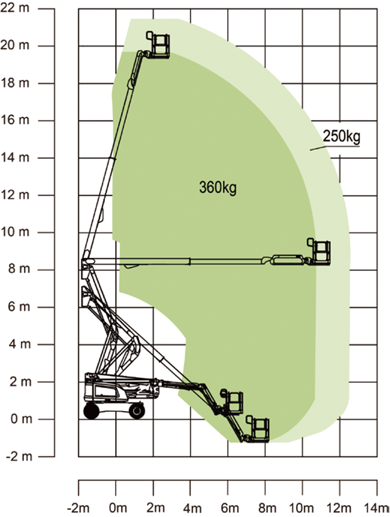

Work Height 21.38m|70ft 1in
Platform Height 19.38m|63ft 7in
Horizontal Outreach 12.3m|40ft 4in
Up and Over Height 8.25m|27ft 1in

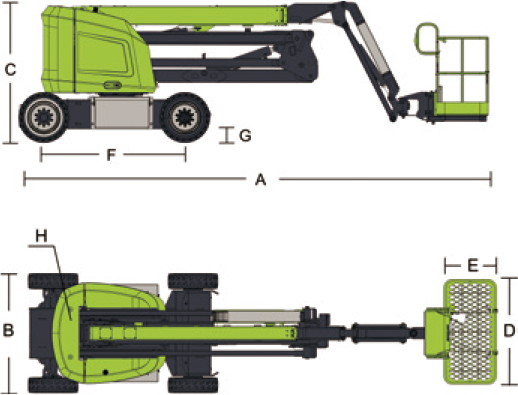

A - Stowed Length 8.82m|28ft 11in
B - Stowed Width 2.46m|8ft 1in
C - Stowed Height 2.52m|8ft 4in
D - Platform Length 2.44/1.83m|8/6ft
E - Platform Width 0.91/0.76m|3ft/2ft 6in
Jib Length 1.53m|5ft
F - Wheelbase 2.52m|8ft 3in
G - Ground Clearance 0.42m|1ft 5in
Platform Capacity 250kg/360kg|550 lb/793 lb
Drive Speed 6.1km/h|3.79 mph
Gradeability 45%(24°)|45%(24°)
Axles Oscillation 0.2m|8in
Turning Radius (Inside) 2.51m|8ft 3in
Turning Radius (Outside) 5.47m|17ft 11in
Turntable Swing 360° continuous|360° continuous
Platform Rotation ±90°|±90°
H-Tail Swing 0.4m|1ft 4in
Max. Wind Speed 12.5m/s|28mph
Diesel Engine Kubota V2403 36kw/2600rpmKubota V2403 36.8kw/2700rpm(EU V)|Kubota V2403 36kw/2600rpmKubota V2403 36.8kw/2700rpm(EU V)
Fuel Tank Capacity 150L|39.6 (us gal)
Auxiliary Power 12V|12V
Control Voltage 12V|12V
Hydraulic System Capacity 160L|42.3 (us gal)
Hydraulic Tank Capacity 75L|19.8 (us gal)
Type 33×12/D610 Foam-filled Tires|33×12/D610 Foam-filled Tires
Gross 10000kg|22046 lb
