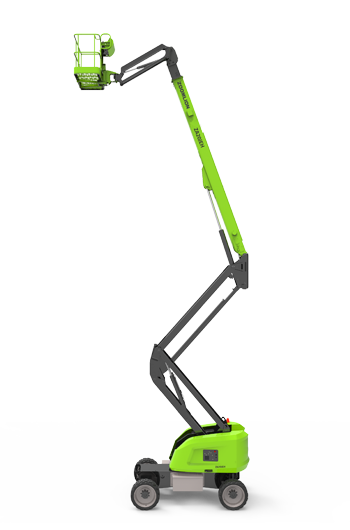

Zoomlion ZA20JEH
  • Zoomlion ZA20JEH
Articulating Boom Lift

Zoomlion ZA20JEH

  • 21.38m|70ft 1in
    Work Height
  • 19.38m|63ft 7in
    Platform Height
  • 12.1m|39ft 8in
    Horizontal Outreach
View Complete Details
  • Overview
  • Specifications
Overview

CE/ANSI/CSA Certified

6kw large power range extender provides power  in low electric quantity for long working hours

Fast lift system directly lowers the boom  from the highest position to the ground, no  need to fold the boom to improve work  efficiency

Independent auxiliary power system  for more secure application

Large reduction ratio reducer provides  stronger gradeability

Large-capacity lithium battery features  long-lasting battery life, and number of  charge and discharge cycles reaches 2500  times, the whole life cycle is maintenance-free, and a 5-year warranty is  provided

Specifications
Work Height 21.38m|70ft 1in
Platform Height 19.38m|63ft 7in
Horizontal Outreach 12.1m|39ft 8in
Up and Over Height 8.25m|27ft 1in
A - Stowed Length 8.8m|28ft 10in
B - Stowed Width 2.46m|8ft 1in
C - Stowed Height 2.52m|8ft 3in
D - Platform Length Standard: 2.44 m Option: 1.83m|Standard: 8ft Option: 6ft
E - Platform Width Standard: 0.91m Option: 0.76m|Standard: 3ft Option: 2ft 6in
F - Wheelbase 2.52m|8ft 3in
G - Ground Clearance 0.4m|1ft 4in
Platform Capacity 250kg/360kg|550 lb/790lb
Drive Speed 5.2km/h|3.23 mph
Gradeability 45%|45%
Axles Oscillation 0.20m|8in
Turning Radius (Inside) 2.78m|9ft 1in
Turning Radius (Outside) 5.49m|18ft
Turntable Swing 360° continuous|360° continuous
Platform Rotation ±90°|±90°
H-Tail Swing 0.64m|2ft 1in
Max. Working Slope 3°/5°|3°/5°
Max. Wind Speed 12.5m/s|28mph
Battery 48V/315Ah Li-ion battery (Li)|48V/315Ah Li-ion battery (Li)
Charger 48V/60A|48V/60A
Range Extender 6kW|6kW
Drive Motor AC 32V|AC 32V
Lift Motor AC 32V|AC 32V
Auxiliary Power 12V DC|12V DC
Hydraulic Tank Capacity 75L|19.8 (us gal)
Fuel Tank 105L|23.1 (us gal)
Type Foam-fifilled tire|Foam-filled tire
Gross 9750kg|21494 lb
