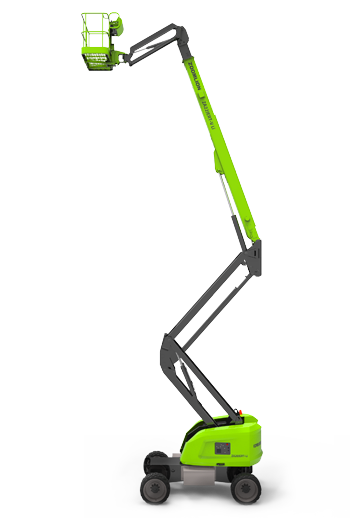

Zoomlion ZA20JERT
  • Zoomlion ZA20JERT
Articulating Boom Lift

Zoomlion ZA20JERT

  • 21.38m|70ft 1in
    Work Height
  • 19.38m|63ft 7in
    Platform Height
  • 12.1m|39ft 8in
    Horizontal Outreach
View Complete Details
  • Overview
  • Specifications
Overview

RT Electric Articulating Boom Lifts feature strong rough terrainability, providing exceptional off-road performance and quiet working conditions around jobsites.

CE/ANSI/CSA Certified






Provide greater work height of 21.38m and lift capacity of 250kg/360kg than competitor

Fast lift system directly lowers the boom from the highest position to the ground, no need to fold the boom to improve work efficiency

Accurate and efficient traveling AC drive system and on-board motion AC drive system provides strong power, stable control and maintenance-free motor

Independent auxiliary power system for more secure application

Large reduction ratio reducer provides stronger gradeability

Large-capacity lithium battery features long-lasting battery life, and number of charge and discharge cycles reaches 2500 times, the whole life cycle is maintenance-free, and a 5-year warranty is provided


Specifications
Work Height 21.38m|70ft 1in
Platform Height 19.38m|63ft 7in
Horizontal Outreach 12.1m|39ft 8in
Up and Over Height 8.25m|27ft 1in

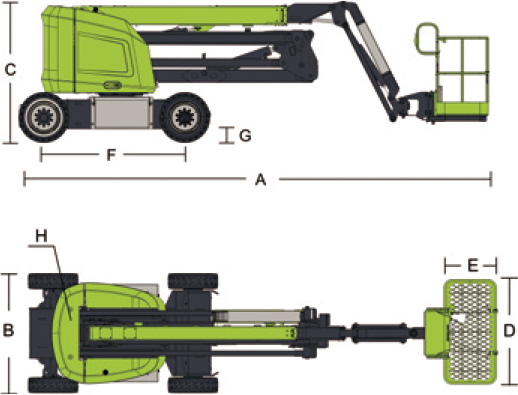

A - Stowed Length 8.8m|28ft 10in
B - Stowed Width 2.46m|8ft 1in
C - Stowed Height 2.52m|8ft 3in
D - Platform Length 2.44m|8ft
E - Platform Width 0.91m|3ft
F - Wheelbase 2.52m|8ft 3in
G - Ground Clearance 0.4m|1ft 4in

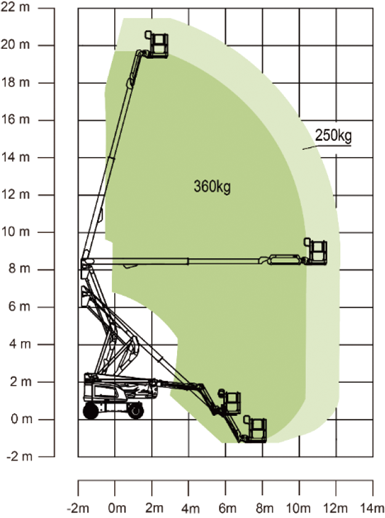

Platform Capacity 250kg/360kg|550 lb/793 lb
Drive Speed 5.2km/h|3.23 mph
Gradeability 45%|45%
Axles Oscillation 0.20m|8in
Turning Radius (Inside) 2.78m|9ft 1in
Turning Radius (Outside) 5.49m|18ft
Turntable Swing 360° non-continuous|360° non-continuous
Platform Rotation ±90°|±90°
H-Tail Swing 0.64m|2ft 1in
Max. Working Slope 3°/5°|3°/5°
Max. Wind Speed 12.5m/s|28mph
Battery 48V/315Ah Li-ion battery|48V/315Ah Li-ion battery
Charger 48V/60A|48V/60A
Drive Motor AC 32V|AC 32V
Lift Motor AC 32V|AC 32V
Auxiliary Power 12V DC Electrical pump|12V DC Electrical pump
Hydraulic Tank Capacity 75L|19.8 (us gal)
Type 33×12 D610 Foam-filled tire|33×12 D610 Foam-filled tire
Gross 9250kg|20392 lb
