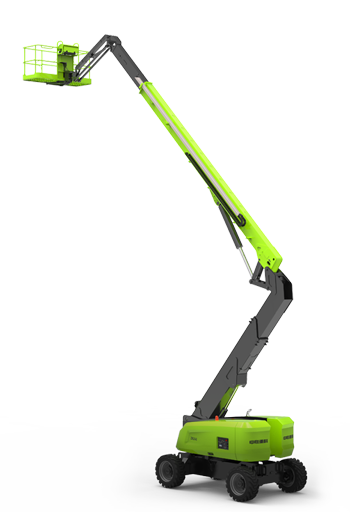

Zoomlion ZA24J

View Complete Details

Overview

Diesel powered articulating boom lifts for precise position and extreme flexibility.

CE Certified

Provide a work height of 26.23m, horizontal outreach of 18.9m, up and over height of 9.29m, and lift capacity of 250kg for higher efficiency

Build-in multiple pressure control leveling system to enhance stability

Precise load sensing system to improve overload safety operations

Platform fast lifting function provides high-efficient performance without tower boom operation

Outstanding below ground reach of 5.1m

Specifications

Work Height	26.23m\|86ft 1in
Platform Height	24.23m\|79ft 6in
Horizontal Outreach	18.9m\|62ft
Up and Over Height	9.29m\|30ft 6in

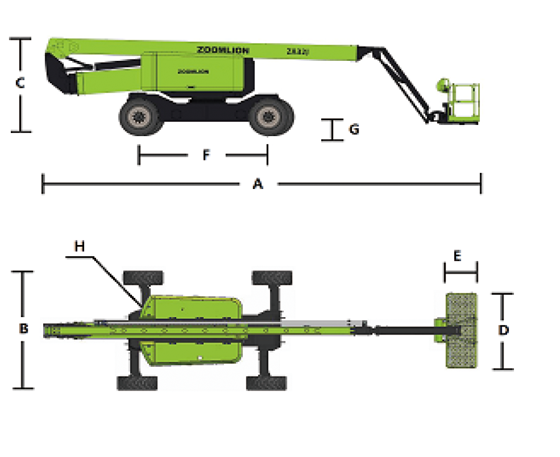

A - Stowed Length	11.27m\|36ft 12in
B - Stowed Width	2.49m\|8ft 2in
C - Stowed Height	2.82m\|9ft 3in
D - Platform Length	2.44m\|8ft
E - Platform Width	0.91m\|2ft12in
F - Wheelbase	3.05m\|10ft
G - Ground Clearance	0.42m\|1ft 5in
Platform Capacity	250kg\|550 lb
Drive Speed	5.0km/h\|3.11 mph
Gradeability	45%(24°)\|45%(24°)
Axles Oscillation	0.2m\|8in
Turning Radius (Inside)	3.14m\|10ft 4in
Turning Radius (Outside)	6.48m\|21ft 3in
Turntable Swing	360° continuous\|360° continuous
Platform Rotation	±90°\|±90°
H-Tail Swing	1.022m\|3ft 4in
Max. Working Slope	4°\|4°
Max. Wind Speed	12.5m/s\|28mph
Diesel Engine	Cummins QSF2.8 54kw/2400rpm Kubota V2607 55.4kw/2700rpm\|Cummins QSF2.8 54kw/2400rpm Kubota V2607 55.4kw/2700rpm
Fuel Tank Capacity	150L\|39.6 (us gal)
Auxiliary Power	12V\|12V
Control Voltage	12V\|12V
Hydraulic System Capacity	240L\|63.4 (us gal)
Hydraulic Tank Capacity	180L\|47.6 (us gal)
Type	15-625 Foam-filled Tires\|15-625 Foam-filled Tires
Gross	18140kg\|39992 lb
