Rough Terrain Scissor Lift

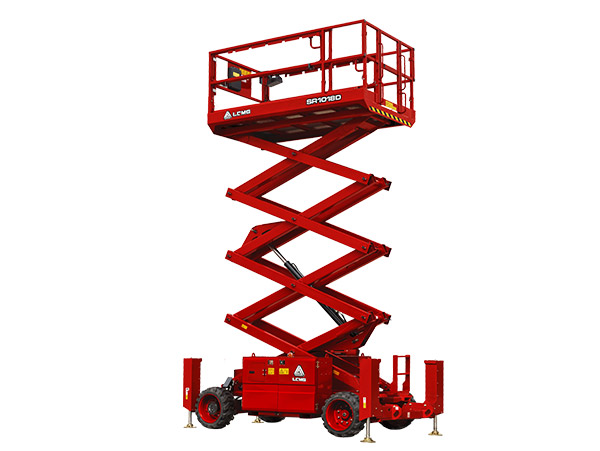

LGMG SR1018D(SR3369D)

11.7m(38.4ft)

Work Height Max.
454kg(998.8lbs)

Platform Capacity
1.79m(5.81ft)

Machine Width

View Complete Details

Overview
Product Features
Specifications

Overview

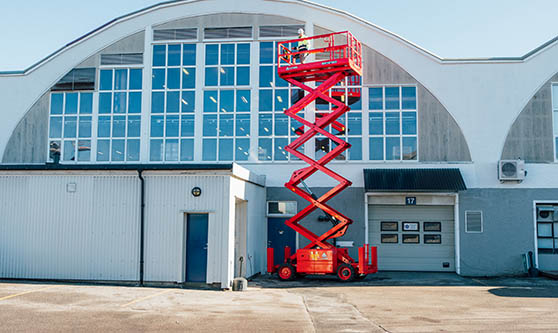

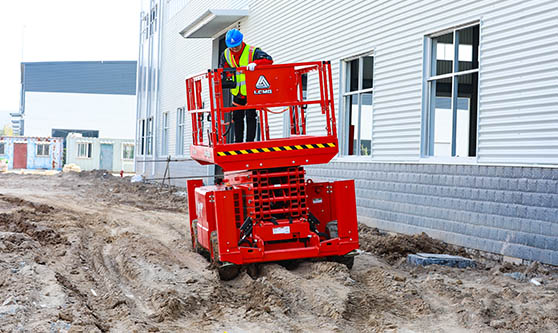

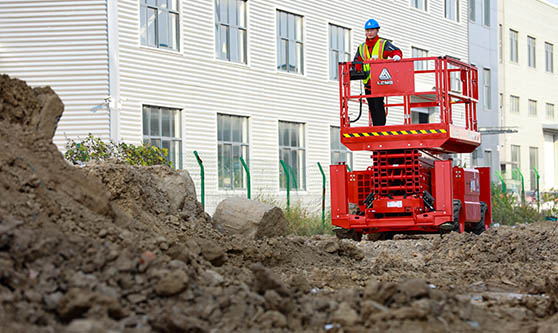

LGMG SR18D Series rough terrain scissor lifts are specifically built for tough construction sites with four-wheel drive and fantastic gradeability. High load capacities with compact design provide a great combination for the larger working area and greater maneuverability through rough terrain job sites.

l Larger work platform with high capacity offers great productivity.

l Powerful diesel engine, oscillating axels and four-wheel drive provide better performance on most rough terrain job sites.

l The overload system and motion alarm help the operator to complete the job in a much safer way.

l Pull-out engine tray for easy access and maintenance.

l On-board self-diagnostic system makes it easier for quick troubleshooting.

Standard features

Proportional control

Foldable guardrail

Emergency descent

Self-lock entry gate

Descent alarm with flashing beacon

Tilt alarm with lift cut-out

Overload sensing system

Emergency stop device

Auto-leveling outriggers

Oscillating axle

All motions alarm

Intelligent diagnostic system

RT Foam-filled tires

Manual brake release

Options

AC power to platform

Telematics

Cold weather package

Solid tires

Solid non-marking tires

Foam-filled non-marking tires

Biodegradable hydraulic oil

Product Features

Specifications

Models	SR1018D	SR3369D
Measurements
Work Height Max.	11.7m	38'5''
A-Platform Height-Raised	9.7m	31'10''
B-Platform Height-Stowed	1.41m	4'8''
C-Platform Length	2.79m	9'2''
D-Platform Width	1.6m	5'3''
E-Overall Length (with ladder)	3.76m	12'4''
F-Overall Width	1.79m	5'10''
G-Overall Height-Rails Up	2.55m	8'4''
Overall Height-Rails Down	1.89m	6'2''
H-Extension Deck	1.52m	5'
I-Wheelbase	2.29m	7'6''
Ground Clearance-Center	0.23m	9''
Productivity
Max. Platform Occupants (In/out)	4 (in) /2 (out)
Platform Capacity	454kg	1000 lbs
Platform Capacity-Extension	140kg	310 lbs
Drive Height	Full Height
Gradeability-Stowed	35%
Min. Turning Radius	4.75m	15'7''
Raise/Lower Speed	39/46s
Brakes	Four-wheel Brake
Drive Mode	4×4
TIres Type	RT Foam-filled
TIres Size	663×283mm	26''×11''
Ground Pressure, Tyres	524.48 kPa	76.1 psi
Power
Power Source	Kubota D1105 18.5kw/24.8hp
Fuel Tank Capacity	53L	14gal
Hydraulic System
Hydraulic Oil Capacity	50L	13.2gal
Weight
Machine Weight (CE/ANSI)	4330kg	9545 lbs
