| Work Height Max. | 13.9m(45.9ft) |
| Platform Capacity | 365kg(803lbs) |
| Machine Width | 1.79m(5.81ft) |
| Machine Length | 3.12m(10.2ft) |
| Machine Weight | 5115kg(11280lbs) |

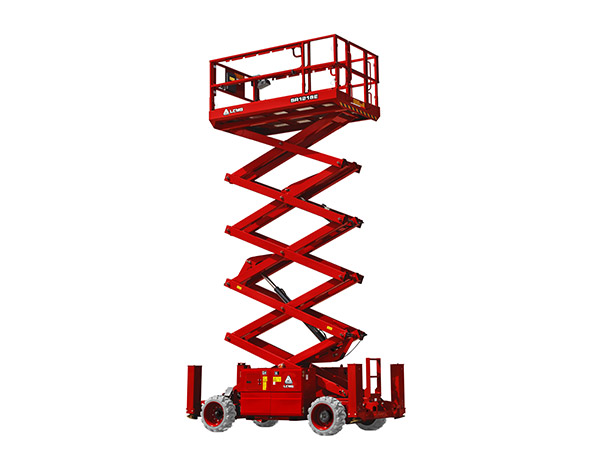

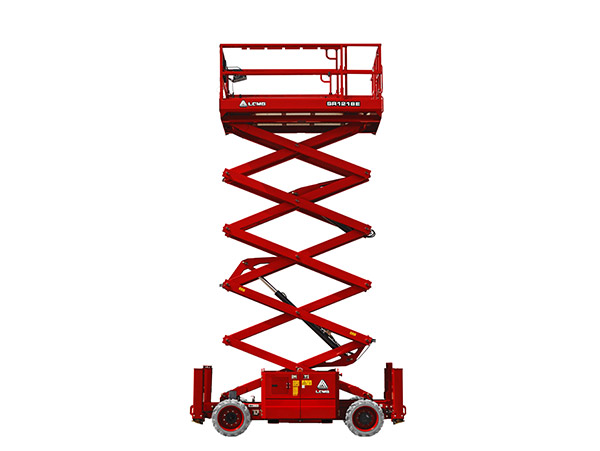

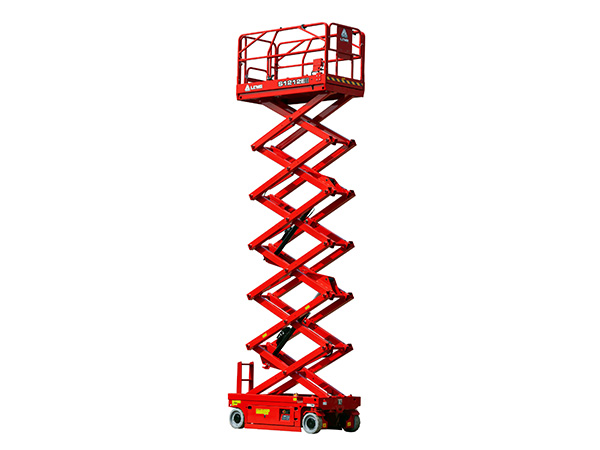

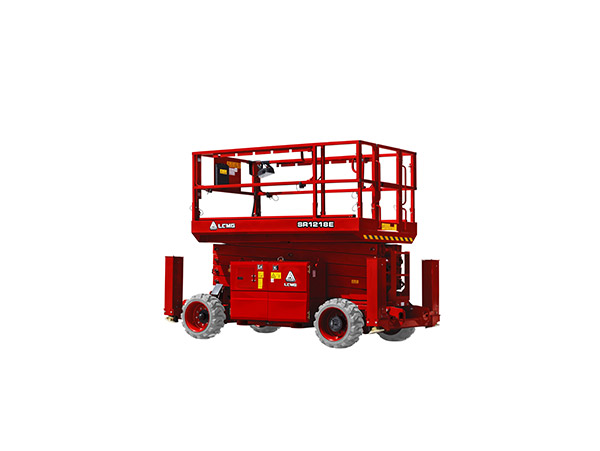

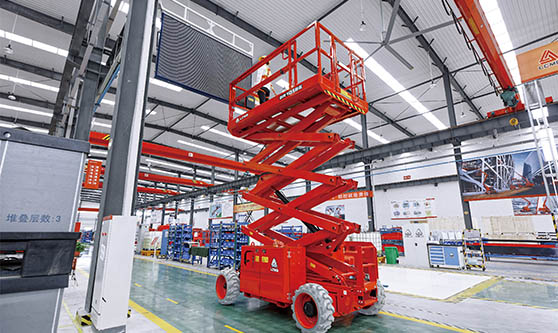

LGMG SR18E Series rough terrain scissor lifts deliver a large platform, high capacity and environmentally friendly solutions for both indoor and outdoor applications. A compact design, battery powered together with oscillating axels provide flexibility for the machine to work on both firm level and rough terrain environments.
l The large platform with high capacity maximizes productivity.
l Battery powered, zero emission and quiet drive mean this machine is environmentally friendly.
l Equipped with oscillating axles that provide excellent performance in soft and rough terrain conditions.
l Hydraulic outriggers deliver a better solution on uneven ground.
l Intelligent self-diagnostic system for quick troubleshooting.
Standard features
Proportional control
Foldable guardrails
Emergency stop device
Manual brake release
Emergency descent
Self-lock entry gate
Descent alarm with flashing beacon
Auto-leveling outriggers
Tilt alarm with lift cut-out
Overload sensing system
Intelligent diagnostic system
Oscillating axle
Foam-filled non-marking tires
All motions alarm
Options
AC power to platform
Telematics
Biodegradable hydraulic oil
Solid tires
Solid non-marking tires
Foam-filled tires
| Work Height Max. | 13.9m(45.9ft) |
| Platform Capacity | 365kg(803lbs) |
| Machine Width | 1.79m(5.81ft) |
| Machine Length | 3.12m(10.2ft) |
| Machine Weight | 5115kg(11280lbs) |
