Home > MEWP > Rough Terrain Scissor Lift > LGMG Rough Terrain Scissor Lift > LGMG SR1323D(SR4390D)

Rough Terrain Scissor Lift

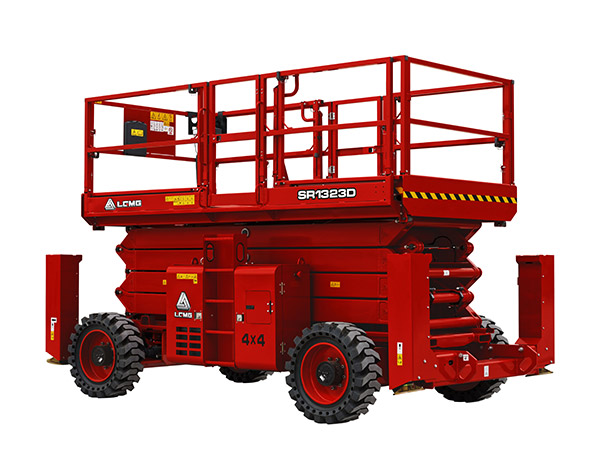

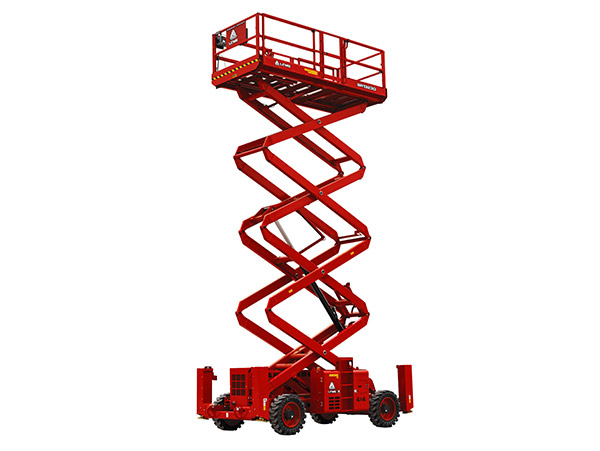

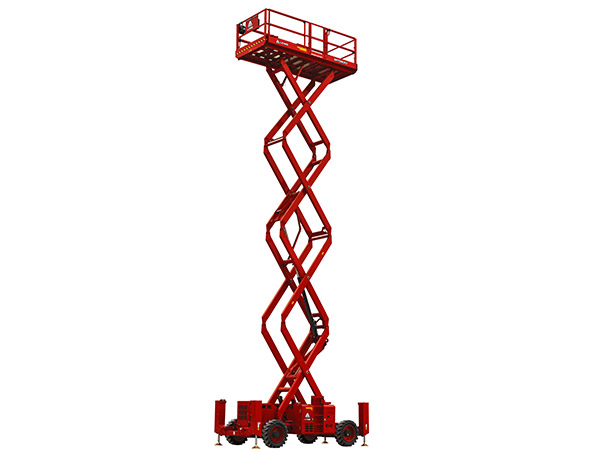

LGMG SR1323D(SR4390D)

15m(49.2ft)

Work Height Max.
680kg(1500lbs)

Platform Capacity
2.3m(7.55ft)

Machine Width

View Complete Details

Overview
Product Features
Specifications

Overview

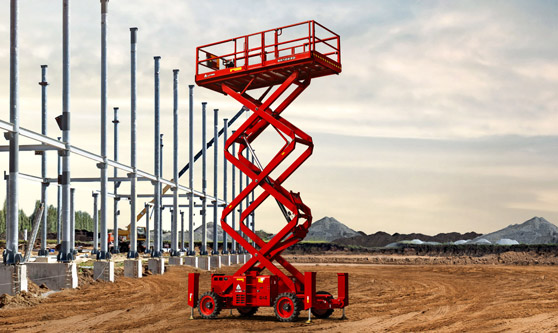

LGMG SR23D Series rough terrain scissor lifts deliver higher capacities and larger platforms for the most tough construction job sites. Four-wheel drive, oscillating axels and hydraulic outriggers provide superior stability on the most tough uneven surfaces.

l Larger work platform with high capacity offers great productivity.

l Powerful diesel engine, oscillating axels and four-wheel drive provide better performance on most rough terrain job sites.

l The overload system and motion alarm help the operator to complete the job in a much safer way.

l Pull-out engine tray for easy access and maintenance.

l On-board self-diagnostic system makes it easier for quick troubleshooting.

Standard features

Proportional control

Foldable guardrail

Emergency descent

Manual brake release

Tilt alarm with lift cut-out

Overload sensing system

Descent alarm with flashing beacon

Self-lock entry gate

Auto-leveling outriggers

Emergency stop device

Intelligent diagnostic system

Oscillating axle

All motions alarm

Solid tires

Options

Telematics

AC power to platform

Cold weather package

Biodegradable hydraulic oil

Pipe racks

Solid non-marking tires

Foam-filled tires

Foam-filled non-marking tires

Product Features

Specifications

Models	SR1323D	SR4390D
Measurements
Work Height Max.	15m	49'3''
A-Platform Height-Raised	13m	42'8''
B-Platform Height-Stowed	1.83m	6'
C-Platform Length	3.98/4.81m	13'1''/15'9''
D-Platform Width	1.83m	6'
E-Overall Length	4.9m	16'1''
F-Overall Width	2.3m	7'7''
G-Overall Height-Guardrails Up	2.96m	9'9''
Overall Height-Guardrails Down	2.28m	7'6''
Extension Deck（Front/Rear）	1.45/1.14m	4'9''/3'9''
H-Wheelbase	2.85m	9'4''
Ground Clearance-Center	0.23m	9''
Productivity
Max. Platform Occupants	7 (in) /7 (out)
Platform Capacity	680kg	1500 lbs
Platform Capacity-Extension	230kg	510 lbs
Drive Height	Full Height
Gradeability-Stowed	40%
Turning Radius-Outside	5.33m	17'6''
Raise/Lower Speed	55/55s
Brakes	Four-wheel Brake
Drive Mode	4×4
TIres Type	Solid
TIres Size	835×290mm	33''×11''
Ground Pressure, Tyres	887.71 kPa	128.8 psi
Power
Power Source	Deutz D2.9 L4 36.4kw/48.8hp
Fuel Tank Capacity	110L	30gal
Hydraulic System
Hydraulic Oil Capacity	140L	37gal
Weight
Machine Weight (7.4m platform, CE)	7460kg	16450 lbs
Machine Weight (6.58m platform, ANSI)	7360kg	16230 lbs
