LGMG SR2024E(SR2024E)

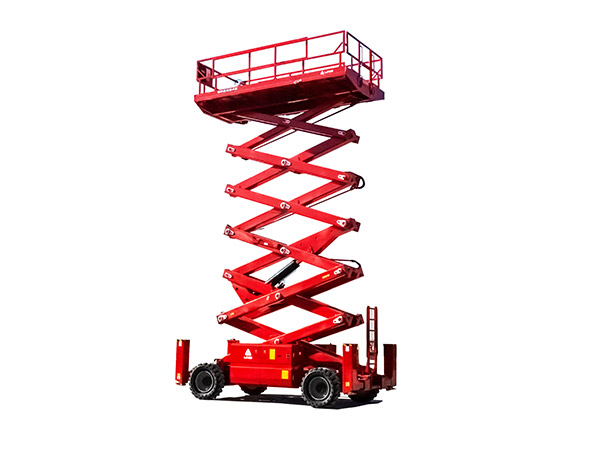

  • LGMG SR2024E(SR2024E)

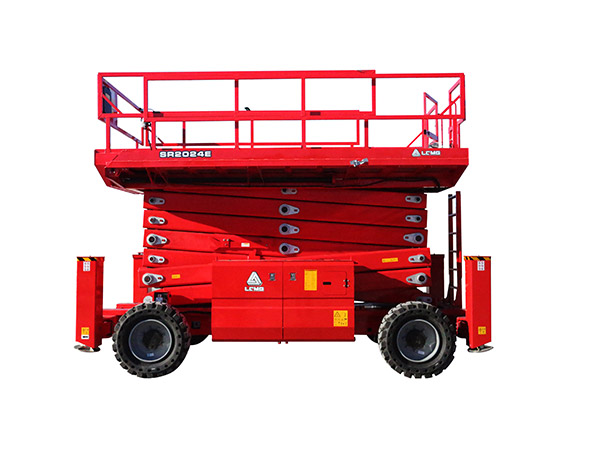

  • LGMG SR2024E(SR2024E)
Rough Terrain Scissor Lift

LGMG SR2024E(SR2024E)

  • 21.7m(21.7m)
    Work Height Max.
  • 750kg(750kg)
    Platform Capacity
  • 2.49m(2.49m)
    Machine Width
View Complete Details
  • Overview
  • Specifications
Overview

l The large platform with extension deck provides a wide working range.

l Battery powered, zero emission and quiet drive mean this machine is environmentally friendly.

l Integrated with four-wheel-drive system with axles that offers strong power and smooth transmission.

l Hydraulic outriggers deliver a better solution on uneven ground.

l lntelligent self-diagnostic system for quick troubleshooting.

Standard features

Proportional control

Foldable guardrails

Self-lock entry gate

Descent alarm with flashing beacon

Tilt alarm with lift cut-out

Overload sensing system

Emergency stop device

Oscillating axle

Manual brake release

Emergence descent

All motions alarm

Intelligent diagnostic system

Auto-leveling outriggers

Foam-filled non-marking tires



Options

AC power to platform

Solid tires

Solid non-marking tires

Foam-filled tires

Telematics

Biodegradable hydraulic oil


Specifications
MODELSSR2024E
MeasurementsMetric
Working Height Max. 21.7m
A-Platform Height-Raised19.7m
B-Platform Length  4.62m
C-Platform Width  2.3m
D-Overall Length (with ladder)4.98m
E-Overall Width2.49m
F-Overall Height-Rails Up3.72m
Overall Height-Rails Down2.83m
Extension Deck2.7m
G-Wheelbase3.2m
Ground Clearance-Center0.3m
PRODUCTIVITY
Max.Platform Occupants (in/out)4 / 4
Platform Capacity750kg
Platform Capacity-Extension500kg
Drive HeightFull Height
Gradeability-Stowed40%
Min. Turning Radius4.5m
Raise/Lower Speed100 / 70s
BrakesFour-wheel Brake
Drive Mode4x4
Tires TypeFoam-filled non-marking tires
Tires Size936x355mm
POWER
Power Source78V(13*6V),330Ah,AGM
HYDUALIC SYSTEM
Hydraulic Oil Volume100 L
WEIGHT
Machine Weight 14600kg
