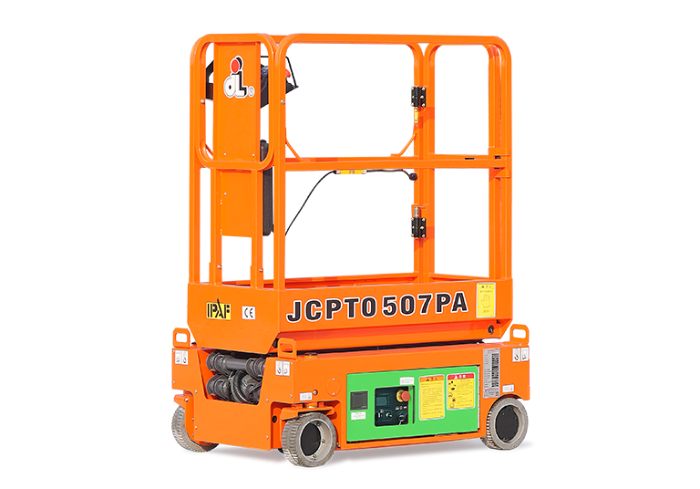

Dingli JCPT0507PA
  • Dingli JCPT0507PA
Scissor Lift

Dingli JCPT0507PA

  • 5.05m/16ft 7in
    Max. Working Height
  • 3.05m/10ft
    Max. Platform Height
  • 1.33m/4ft 4in
    Overall Length(With Ladder)
View Complete Details
  • Overview
  • Specifications
Overview

● Low energy consumption, the total transmission efficiency of the direct motor drive systems reaches 95%, more than 30% energy saving compared with the traditional hydraulic system.

● Safer, higher levels of water and dust resistance, with built-in position sensors, real-time data monitoring of the full stroke. Synergistic drives enable temperature, load, and variable torque control, offering high active safety.

● Easy maintenance, no hydraulic system, avoid system problems such as valve core stuck, oil leakage, oil change, high and low temperature efficiency reduction, equipped with maintenance-free permanent magnet synchronous motor and AGM battery, which greatly reduces maintenance costs.

● More comfortable, full stroke proportional control eliminates the jitter and abrupt feeling caused by self-gravity lowering of the hydraulic system, providing a better experience.

● More environmentally friendly, the noise of the machine is lower than that with the hydraulic system, all-electric and oil-free, zero-emission, high degree of environmental protection.


Specifications
Max. Working Height 5.05m/16ft 7in
Max. Platform Height 3.05m/10ft
Overall Length(With Ladder) 1.33m/4ft 4in
Overall Width 0.77m/2ft 6in
Overall Height(Rails Up) 1.60m/5ft 3in
Platform Size(Length×Width) 1.16m×0.565m/3ft 10in×1ft 10in
Ground Clearance(Stowed/Raised) 0.06m/0.016m / 2in/1in
Wheelbase 0.95m/3ft 1in
Turning Radius(Inside/Outside) 0.45m/1.20m / 1ft 6in/3ft 11in
Tyres φ200×80mm
S.W.L 230kg/507lb
S.W.L On Extension 227kg/500lb
Max. Occupants 1/0
Gradeability 25%
Travel Speed(Stowed) 4.0km/h / 2.49mph
Travel Speed(Raised) 0.4km/h / 0.25mph
Max. Working Slope X-1.5°/Y-3°
Up/Down Speed 20/20sec
Overall Weight(Lead-acid Battery) 570kg/1256lb
Overall Weight(Lithium Battery) 540kg/1190lb
Battery 24V/55Ah
Charger 24V/63Ah
Driving Motor 2x24VDC/0.6kw
Lifting Motor 24VDC/1.4kw
