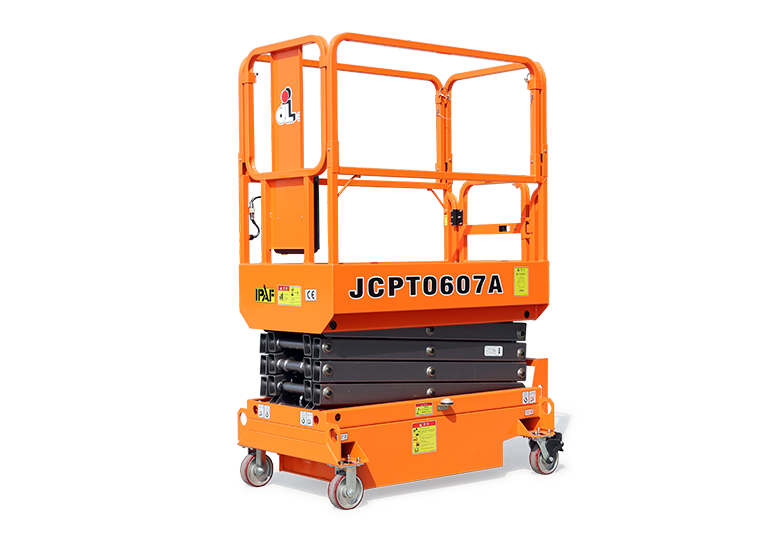

Dingli JCPT0607A
  • Dingli JCPT0607A
Scissor Lift

Dingli JCPT0607A

  • 5.90m/19ft 4in
    Max. Working Height
  • 3.90m/12ft 10in
    Max. Platform Height
  • 1.44m/4ft 9in
    Overall Length(Without Ladder)
View Complete Details
SEND EMAIL
Complete Details
GET LATEST PRICE
QUICK INQUIRY
  • Overview
  • Specifications
Overview

● Battery as power source, compact and flexible, small volume, light weight, no noise, no pollution

● Can access to the elevator at will, specially designed for building mezzanine aerial working

● Easy to transport, one wrecker can transport several small scissors at the same time



Specifications
Max. Working Height 5.90m/19ft 4in
Max. Platform Height 3.90m/12ft 10in
Overall Length(Without Ladder) 1.44m/4ft 9in
Overall Width 0.76m/2ft 6in
Overall Height(Rails Up) 1.92m/6ft 4in
Overall Height(Rails Down) 1.52m/5ft
Platform Size(Length×Width) 1.29m×0.70m/4ft 3in×2ft 4in
Ground Clearance(Stowed/Raised) 0.06m/2in
Wheelbase 1.14m/3ft 9in
Tyres φ150×50mm
S.W.L 240kg/529lb
Max. Occupants 1
Max. Working Slope 1°
Up/Down Speed 38/25sec
Overall Weight(Lead-acid Battery) 530kg/1168lb
Hydraulic Tank 3L/8pt
Battery(Lead-acid Battery) 12V/85Ah
Charger 12V/15A
Lifting Motor 12V/0.8kW
