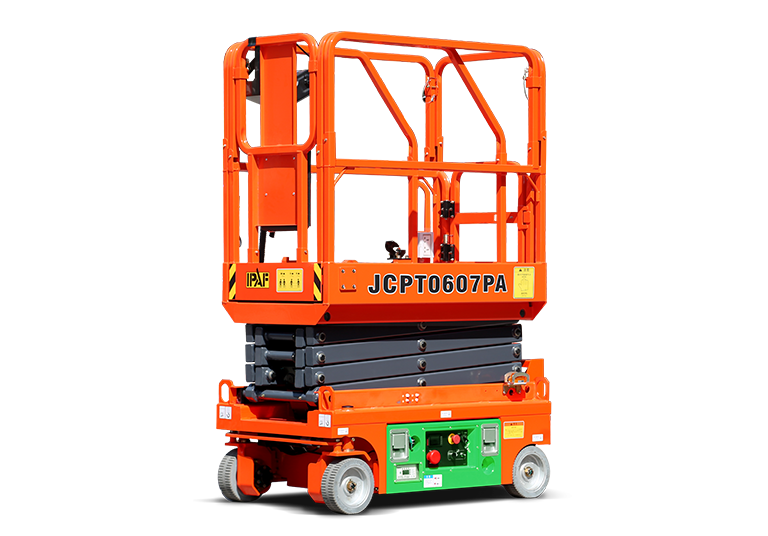

Dingli JCPT0607PA
  • Dingli JCPT0607PA
Scissor Lift

Dingli JCPT0607PA

  • 5.60m/18ft 5in
    Max. Working Height
  • 3.60m/11ft 10in
    Max. Platform Height
  • 1.44m/4ft 9in
    Overall Length(With Ladder)
View Complete Details
  • Overview
  • Specifications
Overview

● Low energy consumption, the total transmission efficiency of the direct motor drive systems reaches 95%, more than 30% energy saving compared with the traditional hydraulic system.

● Safer, higher levels of water and dust resistance, with built-in position sensors, real-time data monitoring of the full stroke. Synergistic drives enable temperature, load, and variable torque control, offering high active safety.

● Easy maintenance, no hydraulic system, avoid system problems such as valve core stuck, oil leakage, oil change, high and low temperature efficiency reduction, equipped with maintenance-free permanent magnet synchronous motor and AGM battery, which greatly reduces maintenance costs.

● More comfortable, full stroke proportional control eliminates the jitter and abrupt feeling caused by self-gravity lowering of the hydraulic system, providing a better experience.

● More environmentally friendly, the noise of the machine is lower than that with the hydraulic system, all-electric and oil-free, zero-emission, high degree of environmental protection.




Specifications
Max. Working Height 5.60m/18ft 5in
Max. Platform Height 3.60m/11ft 10in
Overall Length(With Ladder) 1.44m/4ft 9in
Overall Width 0.76m/2ft 6in
Overall Height(Rails Up) 1.99m/6ft 6in
Overall Height(Rails Down) 1.62m/5ft 4in
Platform Size(Length×Width) 1.29m×0.70m/4ft 3in×2ft 4in
Platform Extension Size 0.60m/2ft
Ground Clearance(Stowed/Raised) 0.06m/0.015m / 2in/1in
Wheelbase 1.05m/3ft 5in
Turning Radius(Inside/Outside) 0.40m/1.55m / 1ft 4in/5ft 1in
Tyres φ230×80mm
S.W.L 240kg/529lb
S.W.L On Extension 100kg/220lb
Max. Occupants 2
Gradeability 25%
Travel Speed(Stowed) 4.0km/h / 2.49mph
Travel Speed(Raised) 0.6km/h / 0.37mph
Max. Working Slope X-1.5°/Y-3°
Up/Down Speed 22/22sec
Overall Weight(Lead-acid Battery) 920kg/2028lb
Battery 24V/85Ah
Charger 24V/15A
Driving Motor 2x24VDC/0.7kw
Lifting Motor 24VDC/1.4kw
