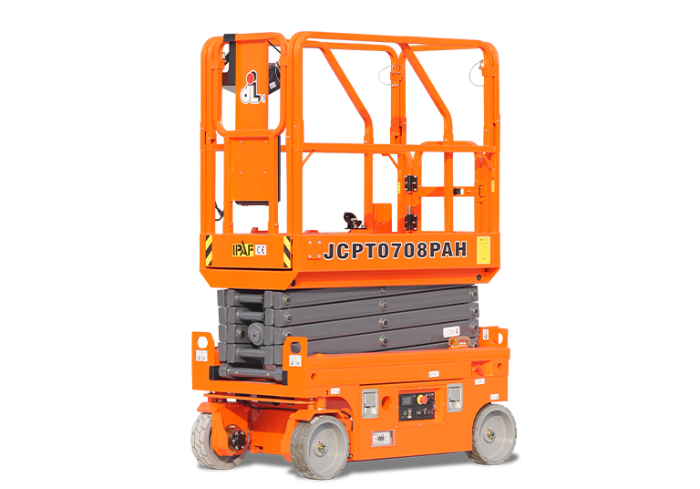

Dingli JCPT0708PAH
  • Dingli JCPT0708PAH
Scissor Lift

Dingli JCPT0708PAH

  • 7.60m/24ft 11in
    Max. Working Height
  • 5.60m/18ft 4in
    Max. Platform Height
  • 1.54m/5ft 1in
    Overall Length(With Ladder)
View Complete Details
  • Overview
  • Specifications
Overview

● Large wheel for better obstacle-crossing ability

● Low energy consumption, the total transmission efficiency of the direct motor drive systems reaches 95%, more than 30% energy saving compared with the traditional hydraulic system.

● Safer, higher levels of water and dust resistance, with built-in position sensors, real-time data monitoring of the full stroke. Synergistic drives enable temperature, load, and variable torque control, offering high active safety.

● Easy maintenance, no hydraulic system, avoid system problems such as valve core stuck, oil leakage, oil change, high and low temperature efficiency reduction, equipped with maintenance-free permanent magnet synchronous motor and AGM battery, which greatly reduces maintenance costs.

● More comfortable, full stroke proportional control eliminates the jitter and abrupt feeling caused by self-gravity lowering of the hydraulic system, providing a better experience.

● More environmentally friendly, the noise of the machine is lower than that with the hydraulic system, all-electric and oil-free, zero-emission, high degree of environmental protection.

Specifications
Max. Working Height 7.60m/24ft 11in
Max. Platform Height 5.60m/18ft 4in
Overall Length(With Ladder) 1.54m/5ft 1in
Overall Width 0.81m/2ft 8in
Overall Height(Rails Up) 2.09m/6ft 10in
Overall Height(Rails Down) 1.73m/5ft 8in
Platform Size(Length×Width) 1.37m×0.70m/4ft 6in×2ft 4in
Platform Extension Size 0.60m/2ft
Ground Clearance(Stowed/Raised) 0.07m/0.015m / 3in/1in
Wheelbase 1.15m/3ft 9in
Turning Radius(Inside/Outside) 0.45m/1.60m / 1ft 6in/5ft 3in
Tyres φ305×100mm
S.W.L 230kg/507lb
S.W.L On Extension 113kg/249lb
Max. Occupants 2/0
Gradeability 25%
Travel Speed(Stowed) 4.0km/h / 2.49mph
Travel Speed(Raised) 0.6km/h / 0.37mph
Max. Working Slope X-1.5°/Y-3°
Up/Down Speed 24/24sec
Overall Weight(Lead-acid Battery) 1340kg/2954lb
Battery 24V/115Ah
Charger 24V/15A
Driving Motor 2x24VDC/0.7kw
Lifting Motor 24VDC/1.8kw
