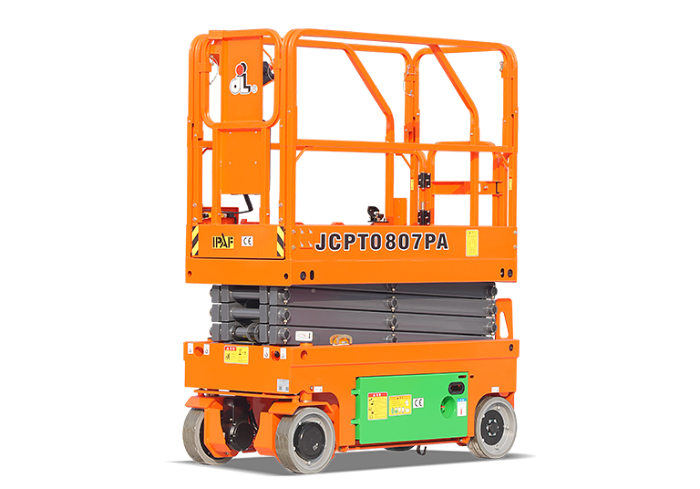

Dingli JCPT0807PA
  • Dingli JCPT0807PA
Scissor Lift

Dingli JCPT0807PA

  • 7.80m/25ft 7in
    Max. Working Height
  • 5.80m/19ft
    Max. Platform Height
  • 1.86m/6ft 1in
    Overall Length(With Ladder)
View Complete Details
  • Overview
  • Specifications
Overview

● Low energy consumption, the total transmission efficiency of the direct motor drive systems reaches 95%, more than 30% energy saving compared with the traditional hydraulic system.

● Safer, higher levels of water and dust resistance, with built-in position sensors, real-time data monitoring of the full stroke. Synergistic drives enable temperature, load, and variable torque control, offering high active safety.

● Easy maintenance, no hydraulic system, avoid system problems such as valve core stuck, oil leakage, oil change, high and low temperature efficiency reduction, equipped with maintenance-free permanent magnet synchronous motor and AGM battery, which greatly reduces maintenance costs.

● More comfortable, full stroke proportional control eliminates the jitter and abrupt feeling caused by self-gravity lowering of the hydraulic system, providing a better experience.

● More environmentally friendly, the noise of the machine is lower than that with the hydraulic system, all-electric and oil-free, zero-emission, high degree of environmental protection.



Specifications
Max. Working Height 7.80m/25ft 7in
Max. Platform Height 5.80m/19ft
Overall Length(With Ladder) 1.86m/6ft 1in
Overall Width 0.76m/2ft 6in
Overall Height(Rails Up) 2.15m/7ft 1in
Overall Height(Rails Down) 1.83m/6ft
Platform Size(Length×Width) 1.67m×0.74m/5ft 6in×2ft 5in
Platform Extension Size 0.90m/2ft 11in
Ground Clearance(Stowed/Raised) 0.09m/0.016m / 4in/1in
Wheelbase 1.36m/4ft 6in
Turning Radius(Inside/Outside) 0m/1.64m / 0in/5ft 5in
Tyres φ323×100mm
S.W.L 230kg/507lb
S.W.L On Extension 113kg/249lb
Max. Occupants 2/1
Gradeability 25%
Travel Speed(Stowed) 4.5km/h / 2.80mph
Travel Speed(Raised) 0.6km/h / 0.37mph
Max. Working Slope X-1.5°/Y-3°
Up/Down Speed 25/25sec
Overall Weight(Lead-acid Battery) 1650kg/3637lb
Battery 24V/185Ah
Charger 24V/30A
Driving Motor 2x15VAC/0.5kw
Lifting Motor 24VDC/1.4kw
