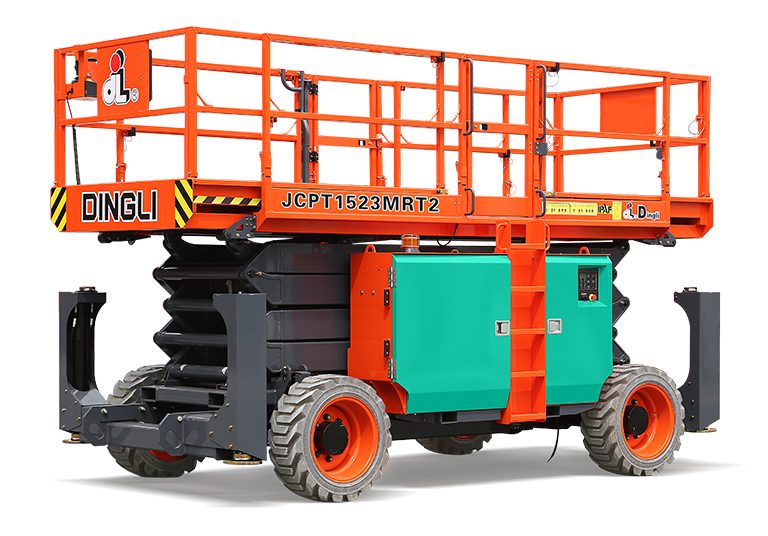

Dingli JCPT1523MRT2
  • Dingli JCPT1523MRT2
Scissor Lift

Dingli JCPT1523MRT2

  • 15.00m/49ft 3in
    Max. Working Height
  • 13.00m/42ft 8in
    Max. Platform Height
  • 4.88m/16ft
    Overall Length(Without Outriggers)
View Complete Details
  • Overview
  • Specifications
Overview

● Driveable at full height under large load of 680kg

● Four-wheel drive & two-wheel steering, great rough-terrain performance, automatic leveling

● Dual-way extension large deck that can be stopped at any point

● Equipped with 18.2kw low-power engine

● Battery can be used as a starter battery

● Under normal working conditions, the engine can charge the battery; under complex working conditions, the battery can provide additional torque output

● Renewable biodiesel can be filled, offering the advantages of high energy saving, more economical, strong power and more eco-friendly

Specifications
Max. Working Height 15.00m/49ft 3in
Max. Platform Height 13.00m/42ft 8in
Overall Length(Without Outriggers) 4.88m/16ft
Overall Length(With Outriggers) 4.88m/16ft
Overall Width 2.33m/7ft 8in
Overall Height(Rails Up) 3.02m/9ft 11in
Overall Height(Rails Down) 2.26m/7ft 5in
Platform Size(Length×Width) 4.88m×1.83m / 16ft×6ft
Platform Extension Size 1.43m/1.13m / 4ft 8in/3ft 10in
Ground Clearance(Stowed/Raised) 0.30m/1ft
Wheelbase 2.86m/9ft 5in
Turning Radius(Inside/Outside) 2.70m/5.50m / 7ft 9in/17ft 1in
Tyres 315/55/D20
S.W.L 680kg/1499lb
S.W.L On Extension 227kg/500lb
Max. Occupants(Indoor/Outdoor) 7/7
Gradeability 40%
Travel Speed(Stowed) 6.0km/h / 3.73mph
Travel Speed(Raised) 1.0km/h / 0.62mph
Max. Working Slope X-2°/Y-3°
Up/Down Speed 73/62sec
Overall Weight(Without Outriggers) 7240kg/15961lb
Overall Weight(With Outriggers) 8140kg/17946lb
Diesel Engine Kubota D1105/18.2kW
Diesel Tank 80L/21gal
Hydraulic Tank 120L/31gal
Battery 80V/67.5Ah
