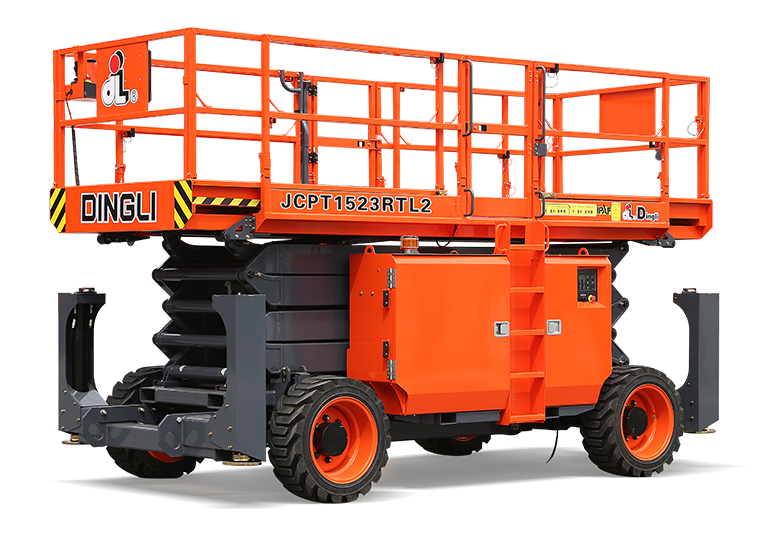

● They feature 4.88m*1.83m working platform and the two-way extension deck lengths are 1.43m and 1.13m respectively, which can be stopped at any point, making the operation more convenient.

●With configuration of one key leveling function, automatic leveling, ensuring the machine much safer and more stable.

Specifications

Max. Working Height	15.00m/49ft 3in
Max. Platform Height	13.00m/42ft 8in
Overall Length(Without Outriggers)	4.88m/16ft
Overall Length(With Outriggers)	4.88m/16ft
Overall Width	2.33m/7ft 8in
Overall Height(Rails Up)	3.02m/9ft 11in
Overall Height(Rails Down)	2.26m/7ft 5in
Platform Size(Length×Width)	4.88m×1.83m / 16ft×6ft
Platform Extension Size	1.43m/1.13m / 4ft 8in/3ft 10in
Ground Clearance(Stowed/Raised)	0.30m/1ft
Wheelbase	2.86m/9ft 5in
Turning Radius(Inside/Outside)	2.70m/5.50m / 7ft 9in/17ft 1in
Tyres	315/55/D20
S.W.L	680kg/1499lb
S.W.L On Extension	227kg/500lb
Max. Occupants(Indoor/Outdoor)	7/7
Gradeability	40%
Travel Speed(Stowed)	5.0km/h / 3.10mph
Travel Speed(Raised)	1.0km/h / 0.62mph
Max. Working Slope	X-2°/Y-3°
Up/Down Speed	73/62sec
Overall Weight(Without Outriggers)	7100kg/15653lb
Overall Weight(With Outriggers)	8000kg/17637lb
Diesel Engine	Kubota D1105/18.2kW
Diesel Tank	80L/21gal
Hydraulic Tank	120L/31gal
