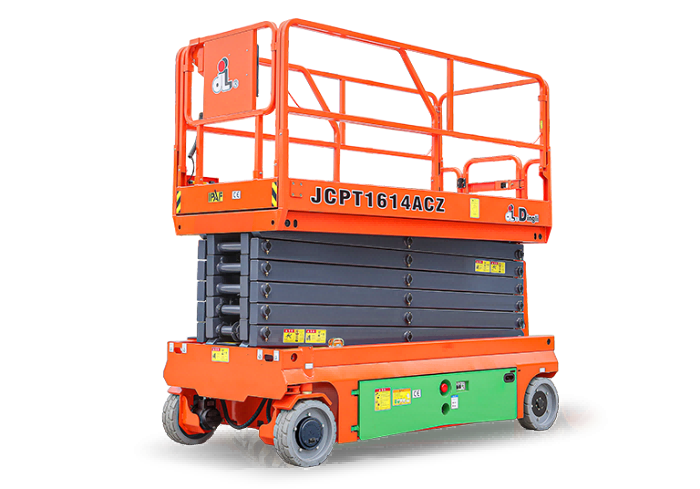

Dingli JCPT1614ACZ

15.70m/51.5ft

Max. Working Height
13.70m/45ft

Max. Platform Height
2.84m/111.8in

Overall Length(With Ladder)

View Complete Details

SEND EMAIL

Complete Details

GET LATEST PRICE

QUICK INQUIRY

Overview
Specifications

Overview

● Battery drive, equipped with fully sealed AC system (drive and lift), replacing the traditional DC system (drive and lift), maintenance-free, more waterproof, more efficient and safer

● Automatic pothole protection system, more safe and reliable

● Unidirectional extension platform, can quickly reach the operation point

● Automatic display of fault code for easy maintenance

● Battery drive, equipped with fully sealed AC system (drive and lift), replacing the traditional DC system (drive and lift), maintenance-free, more waterproof, more efficient and safer

● Automatic pothole protection system, more safe and reliable

● Unidirectional extension platform, can quickly reach the operation point

● Automatic display of fault code for easy maintenance

Specifications

Max. Working Height	15.70m/51.5ft
Max. Platform Height	13.70m/45ft
Overall Length(With Ladder)	2.84m/111.8in
Overall Width	1.39m/54.7in
Overall Height(Rails Up)	2.62m/103.1in
Overall Height(Rails Down)	2.09m/82.3in
Platform Size(Length×Width)	2.64m×1.12m/103.9×44.1in
Platform Extension Size	0.90m/35.4in
Ground Clearance(Stowed/Raised)	0.10m/0.019m / 3.9inx0.7in
Wheelbase	2.22m/87.4in
Turning Radius(Inside/Outside)	0m/2.70m /0in/106.3in
Tyres	φ381×127mm
S.W.L	350kg/772lb
S.W.L On Extension	113kg/250lb
Max. Occupants(Indoor/Outdoor)	2/0
Gradeability	25%
Travel Speed(Stowed)	5.0km/h / 3.10mph
Travel Speed(Raised)	0.8km/h / 0.50mph
Max. Working Slope	X-1.5°/Y-3°
Up/Down Speed	72/67sec
Overall Weight(Lead-acid Battery)	3470kg/7634lb
Hydraulic Tank	20L/5gal 3pt
Lead-acid Battery	24V/240Ah
Lithium Battery	24V/220Ah
Charger	24V/30A
Driving Motor	2×15VAC/0.87kW
Lifting Motor	24VAC/3.5kW
